3517/26 100SF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Flat Ribbon Cables
Description

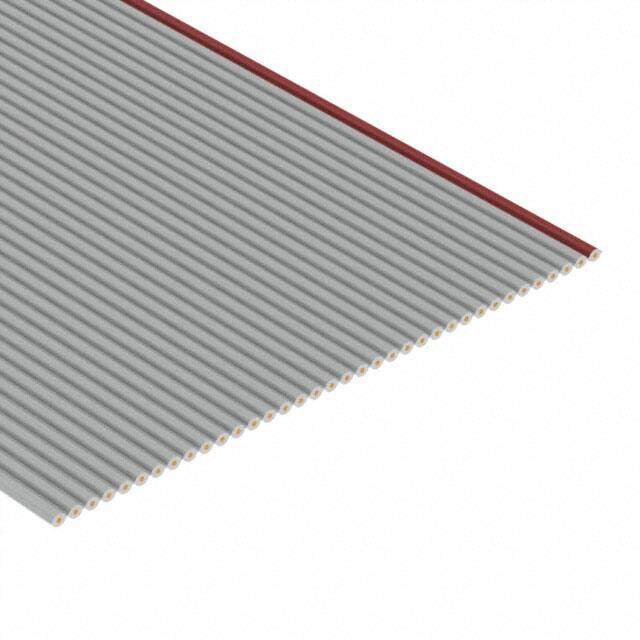

26 3517 Gray Poly-Vinyl Chloride (PVC) Flat Ribbon Cable 100.0' 30.48m 28AWG 10GOhm 300V
PDF
/
Buying Options
Total Price: USD $11.79
Unit Price: USD $11.792
≥1 USD $11.792
≥10 USD $9.39136
≥100 USD $8.50872
≥500 USD $7.484576
≥1000 USD $6.77864
≥3000 USD $6.143104
Inventory: 202
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style 2912
RoHS Status ROHS3 Compliant
Dimensions
Ribbon Thickness 0.110 2.79mm
Length 100.0' 30.48m
Technical
First Conductor Mark Red
Ribbon Width 1.430 36.32mm
Conductor Strand 7 Strands / 36 AWG
Jacket Color Gray
Cable Type Flat Cable, Flat Jacket
Voltage 300V
Insulation Resistance 10GOhm
Wire Gauge 28 AWG
Number of Conductors 26
Shielding Shielded
Pitch 0.050 1.27mm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 3517
Published 2003
Operating Temperature -20°C~80°C
Physical
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 5 Weeks
