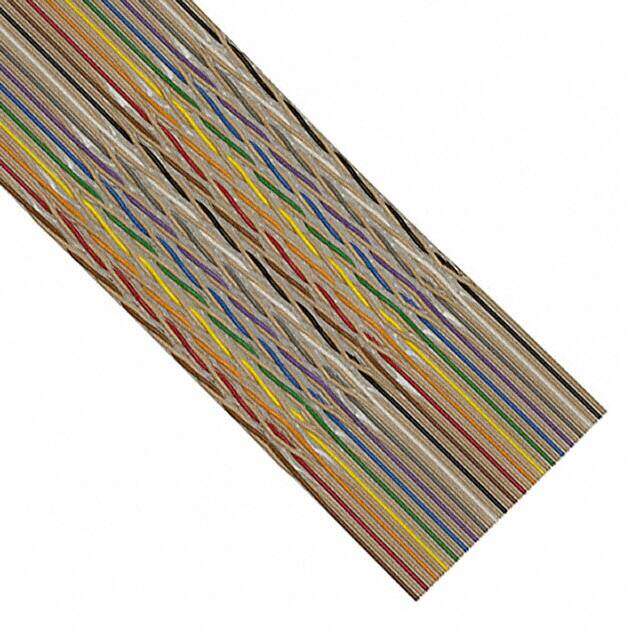

1700/40 100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Flat Ribbon Cables
Description
CBL RIBN 40COND TWIST-PAIR 100'
PDF
/
Buying Options
Total Price: USD $254.89
Unit Price: USD $254.892
≥1 USD $254.892
≥10 USD $202.68512
≥100 USD $184.25968
≥500 USD $161.739072
≥1000 USD $133.076416
Inventory: 95
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style 20462
RoHS Status RoHS Compliant
Dimensions
Ribbon Thickness 0.080 2.03mm
Length 100.0' 30.48m
Technical
Ribbon Width 2.000 50.80mm
Conductor Strand 7 Strands / 36 AWG
Jacket Color Multiple
Cable Type Flat Twisted Pair
Voltage 300V
Insulation Resistance 1GOhms
Wire Gauge 28 AWG
Number of Conductors 40 (20 Pair Twisted)
Shielding Unshielded
Pitch 0.050 1.27mm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 1700
Published 2003
Operating Temperature -20°C~105°C
Physical
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 3 Weeks
