687740200002
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Flat Flex, Ribbon Jumper Cables
Description

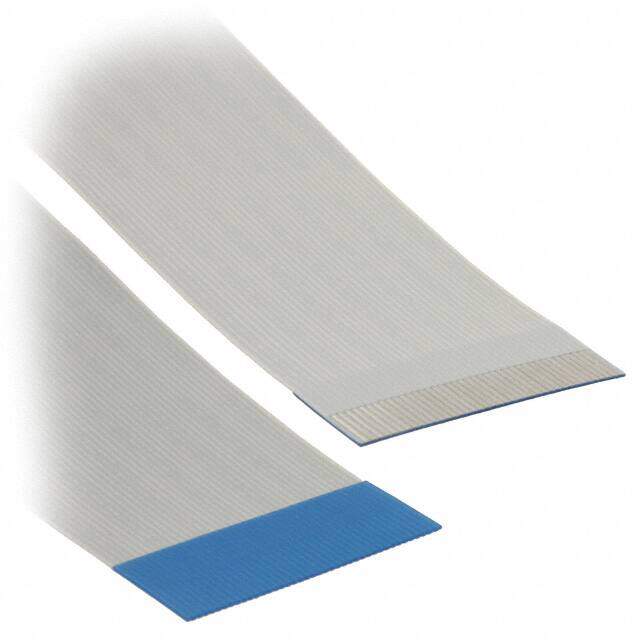

CABLE FFC 40POS 0.50MM 7.87"
PDF
/
Buying Options
Total Price: USD $2.43
Unit Price: USD $2.431103
≥1 USD $2.431103
≥10 USD $2.293494
≥100 USD $2.163672
≥500 USD $2.0412
≥1000 USD $1.925658
Inventory: 1179
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 49 Weeks
Physical
Contact Material Copper
Contact Plating Tin
Housing Material PET
Technical
Series WR-FCC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Number of Positions 40
Max Operating Temperature 105°C
Min Operating Temperature -30°C
Color White
Number of Rows 1
Gender Male
Voltage - Rated 60V
Voltage - Rated DC 60V
Pitch 0.020 0.50mm
Orientation Straight
Current Rating 500mA
Number of Conductors 40
Termination Style Top on One Side, Bottom on Other, Backers on Both Sides
Voltage - Rated AC 60V
Number of Contacts 40
Insulation Resistance 1GOhm
Cable Type FFC, FPC
Wire/Cable Type Flat Flex
Cable Length 200mm
Number of Poles 40
Number of Cores 40
Number of Strands 1
Contact Location Opposite Side
Dimensions
Length 7.874 200.00mm
Width 20.5mm
Length - Exposed Ends 0.157 4.00mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
