687708200002
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Flat Flex, Ribbon Jumper Cables
Description

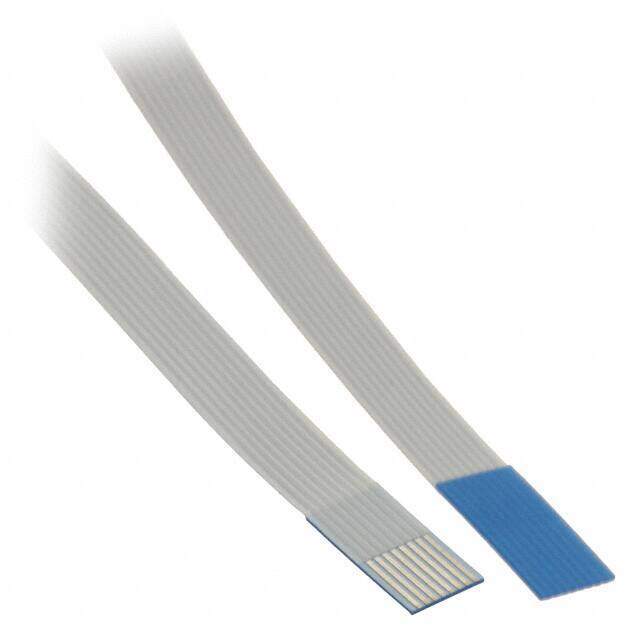

CABLE FFC 8POS 0.50MM 7.87"
PDF
/
Buying Options
Total Price: USD $2.53
Unit Price: USD $2.527553
≥1 USD $2.527553
≥10 USD $2.384484
≥100 USD $2.249507
≥500 USD $2.12218
≥1000 USD $2.00206
Inventory: 1126
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 77 Weeks
Physical
Contact Material Copper
Contact Plating Tin
Housing Material Polyethylene
Technical
Series WR-FCC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Cable
Max Operating Temperature 105°C
Min Operating Temperature -30°C
Color White
Number of Rows 1
Gender Male
Voltage - Rated 60V
Pitch 0.020 0.50mm
Orientation Straight
Current Rating 500mA
Number of Conductors 8
Termination Style Top on One Side, Bottom on Other, Backers on Both Sides
Number of Contacts 8
Cable Type FFC, FPC
Wire/Cable Type Flat Flex
Cable Length 200mm
Number of Poles 8
Number of Cores 8
Number of Strands 1
Contact Location Opposite Side
Dimensions
Length 7.874 200.00mm
Width 4.5mm
Length - Exposed Ends 0.157 4.00mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
