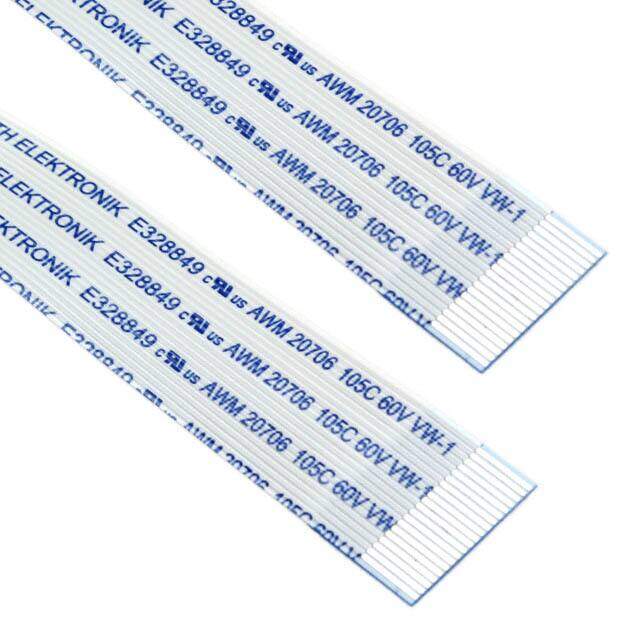

687620200002
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Flat Flex, Ribbon Jumper Cables
Description
CABLE FFC 20POS 0.50MM 7.87"
PDF
/
Buying Options
Total Price: USD $2.5
Unit Price: USD $2.503199
≥1 USD $2.503199
≥10 USD $2.361504
≥100 USD $2.227836
≥500 USD $2.101729
≥1000 USD $1.982763
Inventory: 1125
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Copper
Contact Plating Tin
Housing Material PET
Technical
Series WR-FCC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Number of Positions 20
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Color White
Number of Rows 2
Gender Male
Voltage - Rated 60V
Pitch 0.020 0.50mm
Orientation Straight
Current Rating 500mA
Number of Conductors 20
Termination Style Top on Both Sides, Backers on Both Sides
Number of Contacts 20
Insulation Resistance 1GOhm
Cable Type FFC, FPC
Wire/Cable Type Flat Flex
Cable Length 200mm
Number of Poles 20
Number of Cores 20
Number of Strands 1
Contact Location Same Side
Dimensions
Length 7.874 200.00mm
Width 10.5mm
Length - Exposed Ends 0.157 4.00mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
