686726050001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Flat Flex, Ribbon Jumper Cables
Description

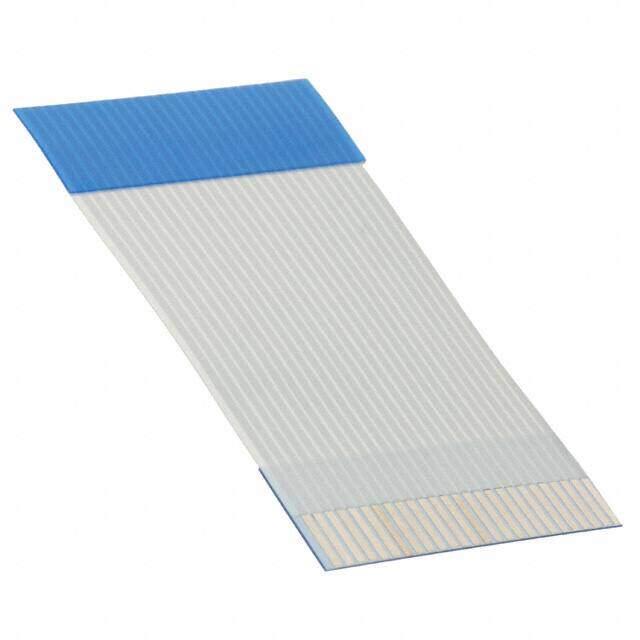

CABLE FFC 26POS 1.00MM 1.97"
PDF
/
Buying Options
Total Price: USD $2.34
Unit Price: USD $2.336494
≥1 USD $2.336494
≥10 USD $2.204237
≥100 USD $2.079471
≥500 USD $1.961766
≥1000 USD $1.85072
Inventory: 985
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 49 Weeks
Physical
Contact Material Copper
Contact Plating Tin
Housing Material PET
Technical
Series WR-FCC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Max Operating Temperature 105°C
Min Operating Temperature -30°C
Color White
Number of Rows 1
Gender Male
Voltage - Rated 60V
Pitch 0.039 1.00mm
Orientation Straight
Current Rating 1A
Number of Conductors 26
Termination Style Top on One Side, Bottom on Other, Backers on Both Sides
Number of Contacts 26
Cable Type FFC, FPC
Wire/Cable Type Flat Flex
Cable Length 50mm
Number of Poles 26
Number of Cores 26
Number of Strands 1
Dimensions
Length 1.970 50.04mm
Width 27mm
Length - Exposed Ends 0.197 5.00mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
