0982670305
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Flat Flex, Ribbon Jumper Cables
Description

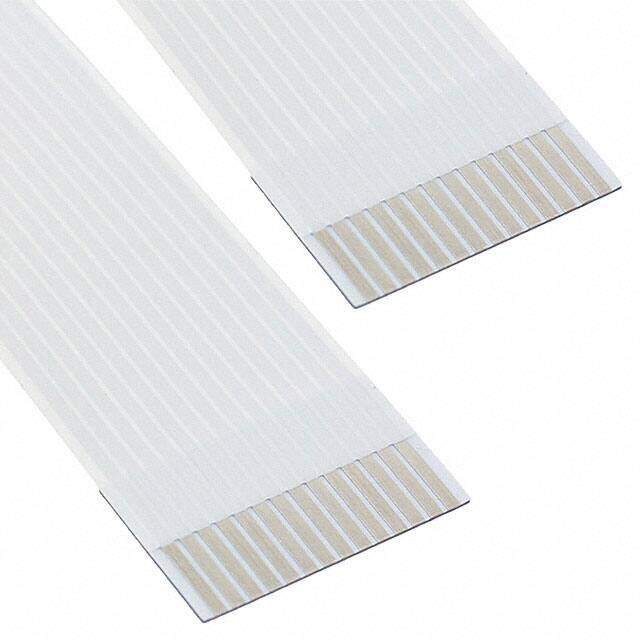

FFC Jumper Cable 14 1mm 0.229m Copper 1.2A 60VAC Premo-Flex? Bag
PDF
/
Inventory: 9947
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Conductor Material Copper
Technical
Series Premo-Flex 98267
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Pitch 0.039 1.00mm
Reach Compliance Code unknown
Number of Conductors 14
Termination Style Top on Both Sides, Backers on Both Sides
Max Voltage Rating (AC) 60V
Max Current Rating 1.2A
Connector Support Type WIRE AND CABLE
Cable Type FFC, FPC
Wire/Cable Type Flat Flex
Cable Length 229mm
Cable Pitch 1mm
Dimensions
Length 9.000 228.60mm
Length - Exposed Ends 0.157 4.00mm
Compliance
RoHS Status ROHS3 Compliant
