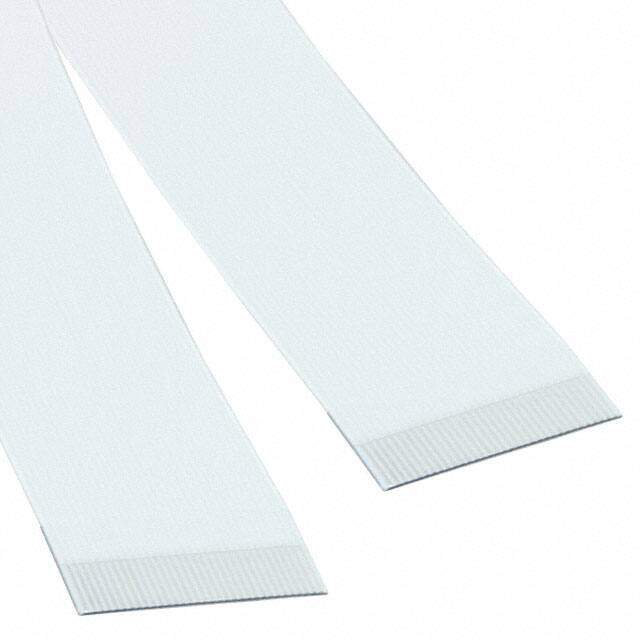

0982661043
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Flat Flex, Ribbon Jumper Cables
Description
CABLE FFC 33POS 0.50MM 7"
PDF
/
Inventory: 3996
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length - Exposed Ends 0.157 4.00mm
Length 7.000 177.80mm
Technical
Contact Location Same Side
Cable Pitch 500μm
Cable Length 178mm
Cable Type FFC, FPC
Max Current Rating 500mA
Max Voltage Rating (AC) 60V
Number of Circuits 33
Voltage - Rated AC 60V
Termination Style Top on Both Sides, Backers on Both Sides
Number of Conductors 33
Current Rating 500mA
Pitch 0.020 0.50mm
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Termination Cable
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Premo-Flex 98266
Physical
Conductor Material Copper
Housing Material Polyamide
Contact Plating Tin
Supply Chain
Factory Lead Time 11 Weeks
