PSR1636-25
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Flat Flex Cables (FFC, FPC)
Description

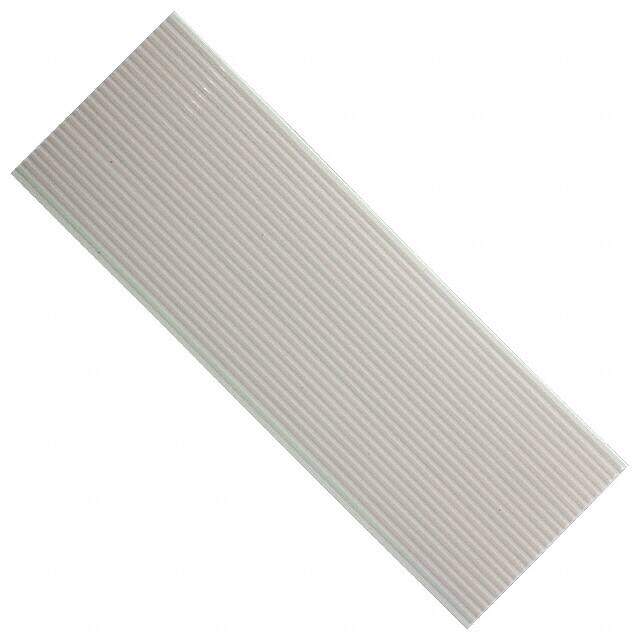

CABLE FLAT FLEX 25COND 0.050"
PDF
/
Buying Options
Total Price: USD $723.26
Unit Price: USD $723.2632
≥1 USD $723.2632
≥10 USD $620.60416
Inventory: 39
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style 2643
RoHS Status RoHS Compliant
Dimensions
Conductor Thickness 0.003 0.08mm
Insulation Thickness 50.8μm
Jacket (Insulation) Thickness 0.002 0.05mm
Technical
Cable Width 1.30 33.02mm
Wire/Cable Gauge 30 AWG
Cable Length 500' 152.4m
Wire Gauge 30 AWG (Equivalent)
Number of Conductors 25
Current Rating 2.5A
Pitch 0.050 1.27mm
Current Rating (Amps) 2.5A
Voltage - Rated 300V
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Conductor 1 Tinned
Series PSR1636
Published 2005
Operating Temperature 105°C
Physical
Jacket (Insulation) Material Polyester
Conductor Material Copper, Bare
Insulation Material Polyester
Mount Cable
Supply Chain
Factory Lead Time 6 Weeks
