PSR1635-18
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Cables, Wires / Flat Flex Cables (FFC, FPC)
Description

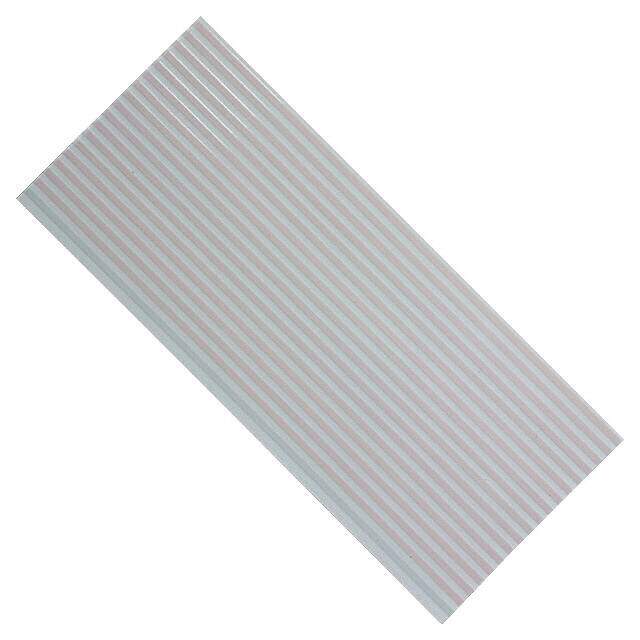

CABLE FFC 18COND 0.100" 500'
PDF
/
Buying Options
Total Price: USD $688.82
Unit Price: USD $688.82
≥1 USD $688.82
≥10 USD $591.052
Inventory: 27
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style 2643
RoHS Status RoHS Compliant
Dimensions
Conductor Thickness 0.003 0.08mm
Insulation Thickness 50.8μm
Jacket (Insulation) Thickness 0.002 0.05mm
Technical
Cable Width 1.90 48.26mm
Wire/Cable Gauge 27 AWG
Cable Length 500' 152.4m
Wire Gauge 27 AWG (Equivalent)
Number of Conductors 18
Current Rating 3A
Pitch 0.100 2.54mm
Current Rating (Amps) 3A
Voltage - Rated 300V
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Conductor 1 Tinned
Series PSR1635
Published 2005
Operating Temperature 105°C
Physical
Jacket (Insulation) Material Polyester
Conductor Material Copper, Bare
Insulation Material Polyester
Package / Case 100
Mount Cable
Supply Chain
Factory Lead Time 6 Weeks
