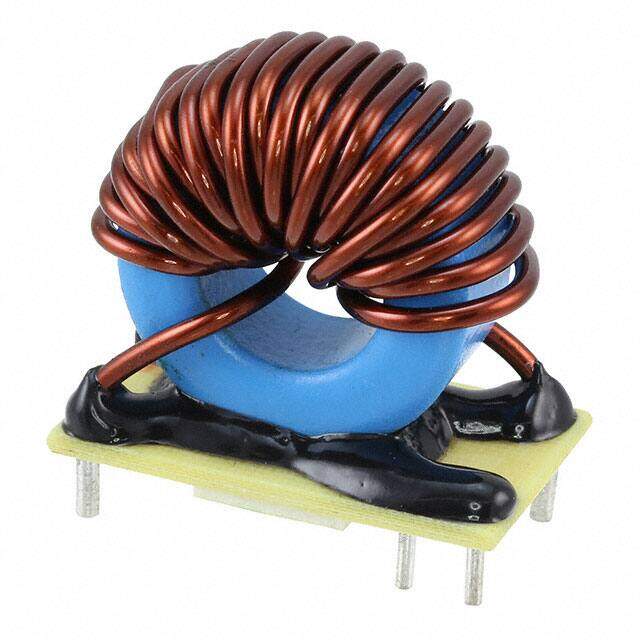

S14100036 image
Favorite
S14100036 image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 56UH 17A 8.5 MOHM
PDF
/
Inventory: 5333
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 23.0124mm
Length 35.9918mm
Height Seated (Max) 1.378 35.00mm

Technical

Inductance Frequency - Test 100kHz
DC Resistance (DCR) 8.5mOhm Max
Test Frequency 100kHz
Inductance 56μH
Current Rating 17A
Shielding Unshielded
Current Rating (Amps) 17A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Toroidal
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 1.417Lx0.906W 36.00mmx23.00mm
Series WE-LCB
Packaging Tray
Operating Temperature -40°C~125°C

Physical

Material - Core Iron Powder
Package / Case Radial, Vertical (Open)
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 15 Weeks
