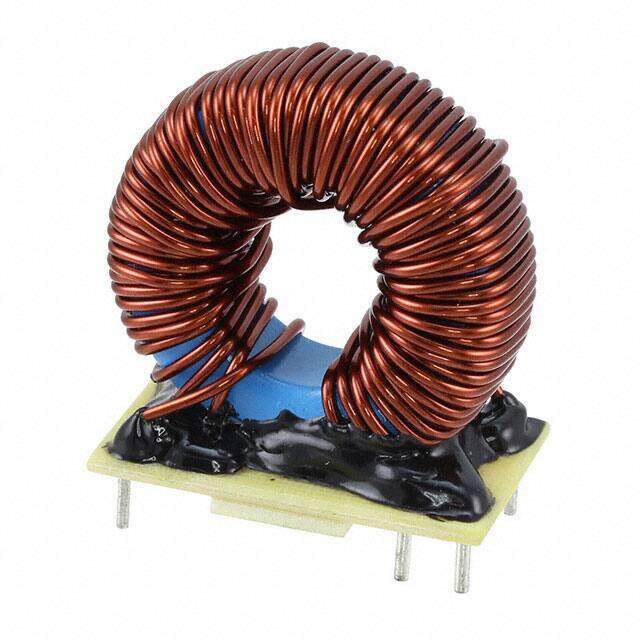

S14100035
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 307UH 7A 65 MOHM
PDF
/
Inventory: 2700
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Material - Core Iron Powder
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series WE-LCB
Size / Dimension 1.772Lx0.906W 45.00mmx23.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Toroidal
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 7A
Shielding Unshielded
Current Rating 7A
Inductance 307μH
Test Frequency 100kHz
DC Resistance (DCR) 65mOhm Max
Inductance Frequency - Test 100kHz
Dimensions
Height Seated (Max) 1.654 42.00mm
Length 45.0088mm
Width 23.0124mm
Compliance
RoHS Status ROHS3 Compliant
