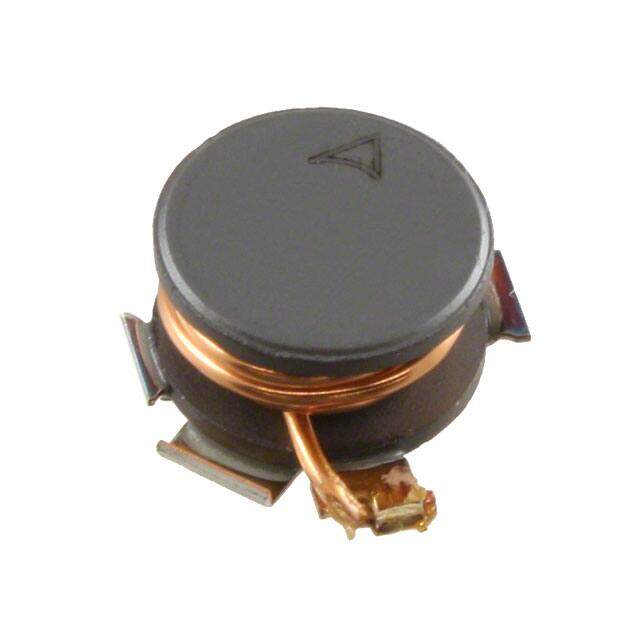

784776218 image
Favorite
784776218 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description ROHS3Compliant Wirewound Active Tape & Reel (TR) Wirewound Inductor -40C~125C 5MHz 630mOhm Max 180muH
PDF
/
Inventory: 3782
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings AEC-Q200
RoHS Status ROHS3 Compliant

Dimensions

Width 8.9916mm
Length 10.0076mm
Height Seated (Max) 0.232 5.90mm

Technical

Current - Saturation 780mA
Inductance Frequency - Test 10kHz
Frequency - Self Resonant 5MHz
DC Resistance (DCR) 630mOhm Max
Test Frequency 10kHz
Inductance 180μH
Current Rating 760mA
Shielding Unshielded
Current Rating (Amps) 760mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.394Lx0.354W 10.00mmx9.00mm
Series WE-PD2A
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Supplier Device Package 1054
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
