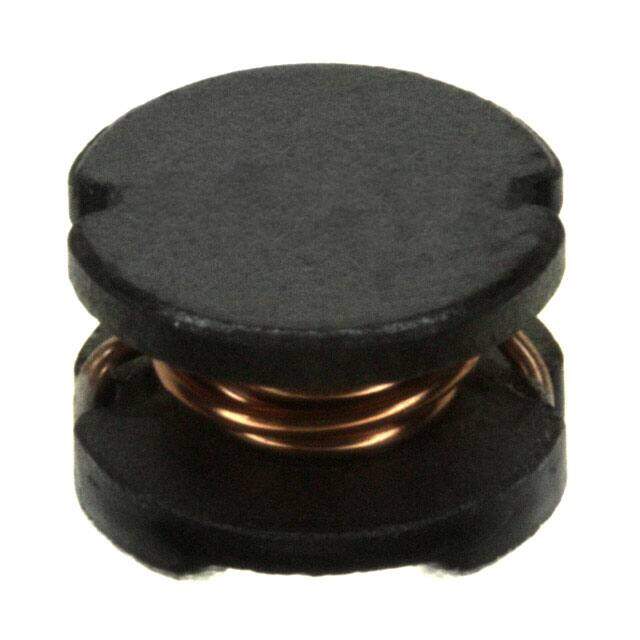

78477420
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2A Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 100muH
PDF
/
Inventory: 6462
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 5848
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2A
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 570mA
Shielding Unshielded
Current Rating 570mA
Inductance 100μH
Test Frequency 10kHz
DC Resistance (DCR) 650mOhm Max
Frequency - Self Resonant 7MHz
Inductance Frequency - Test 10kHz
Current - Saturation 680mA
Dimensions
Height Seated (Max) 0.191 4.85mm
Length 5.7912mm
Width 5.207mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
