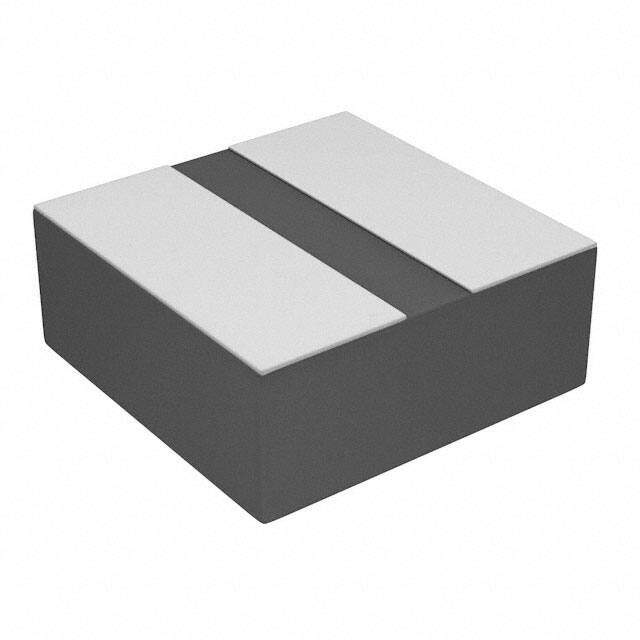

784383350047
RoHS
RoHS compliant
RoHS compliantPackage 1212 (3030 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-MAIA 1212 (3030Metric) 0.118Lx0.118W 3.00mmx3.00mm 470nH
PDF
/
Inventory: 8168
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Width 2.9972mm
Length 2.9972mm
Height Seated (Max) 0.059 1.50mm
Technical
Current - Saturation 5.8A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 105MHz
DC Resistance (DCR) 23mOhm Max
Test Frequency 100kHz
Inductance 470nH
Case Code (Imperial) 1212
Case Code (Metric) 3030
Current Rating 4.6A
Shielding Shielded
Current Rating (Amps) 4.6A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Molded
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.118Lx0.118W 3.00mmx3.00mm
Series WE-MAIA
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Iron Alloy
Supplier Device Package 3015
Package / Case 1212 (3030 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
