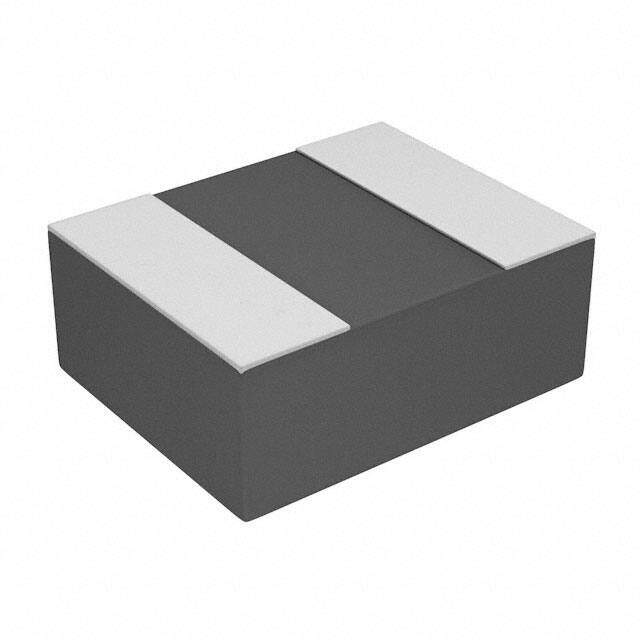

78438323010 image
Favorite
78438323010 image
Favorite

78438323010

Würth Elektronik
RoHS
RoHS RoHS compliant
Package 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-MAIA 1008 (2520Metric) 0.098Lx0.079W 2.50mmx2.00mm 1muH
PDF
/
Buying Options
Total Price: USD $1.62
Unit Price: USD $1.620388
≥1 USD $1.620388
≥10 USD $1.528668
≥100 USD $1.442146
≥500 USD $1.360511
≥1000 USD $1.283499
Inventory: 1133
Minimum: 1
-
+

Technical Details

Compliance

Ratings AEC-Q200
RoHS Status ROHS3 Compliant

Dimensions

Width 2.0066mm
Length 2.4892mm
Height Seated (Max) 0.039 1.00mm

Technical

Current - Saturation 4A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 80MHz
DC Resistance (DCR) 75mOhm Max
Test Frequency 100kHz
Inductance 1μH
Case Code (Imperial) 1008
Case Code (Metric) 2520
Current Rating 2.5A
Shielding Shielded
Current Rating (Amps) 2.5A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Molded
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Series WE-MAIA
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Iron Alloy
Supplier Device Package 2510
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 14 Weeks
