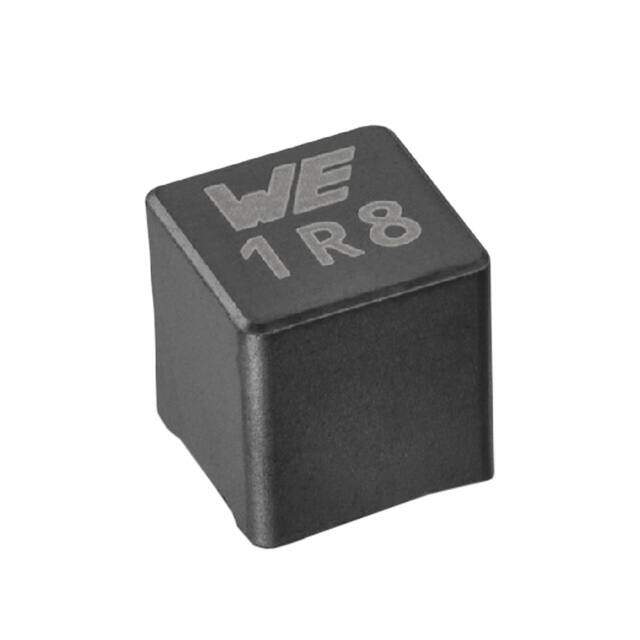

7843340033
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 330NH 21A 2.1MOHM SMD
PDF
/
Buying Options
Total Price: USD $2.17
Unit Price: USD $2.16851
≥1 USD $2.16851
≥10 USD $2.045761
≥100 USD $1.929969
≥500 USD $1.82072
≥1000 USD $1.717657
Inventory: 1168
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.366 9.30mm
Technical
Current - Saturation 36A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 196MHz
DC Resistance (DCR) 2.1mOhm Max
Inductance 330nH
Shielding Shielded
Current Rating (Amps) 21A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.319Lx0.319W 8.10mmx8.10mm
Series WE-CHSA
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C
Physical
Material - Core Ferrite
Supplier Device Package 8090
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
