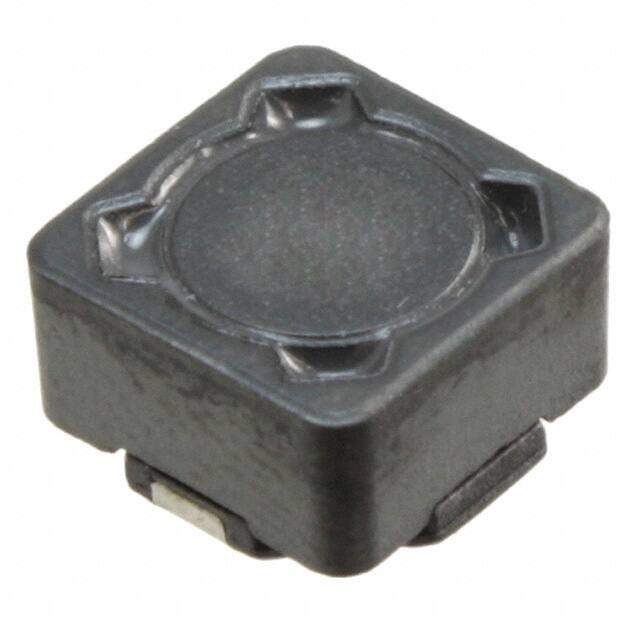

7687779221
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD HV Nonstandard 0.287Lx0.287W 7.30mmx7.30mm 220muH
PDF
/
Buying Options
Total Price: USD $1.9
Unit Price: USD $1.904607
≥1 USD $1.904607
≥10 USD $1.796798
≥100 USD $1.695089
≥500 USD $1.599144
≥1000 USD $1.50862
Inventory: 4019
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 7.2898mm
Length 7.3mm
Height Seated (Max) 0.177 4.50mm
Height 4.5mm
Technical
Series Resistance 1.1Ohm
RMS Current (Irms) 560mA
Inductance Tolerance 20%
Current - Saturation 500mA
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 4.9MHz
Max DC Current 560mA
DC Resistance (DCR) 1.3Ohm Max
Test Frequency 100kHz
Inductance 220μH
Current Rating 560mA
Depth 7.3mm
Shielding Shielded
Current Rating (Amps) 560mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.287Lx0.287W 7.30mmx7.30mm
Series WE-PD HV
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
