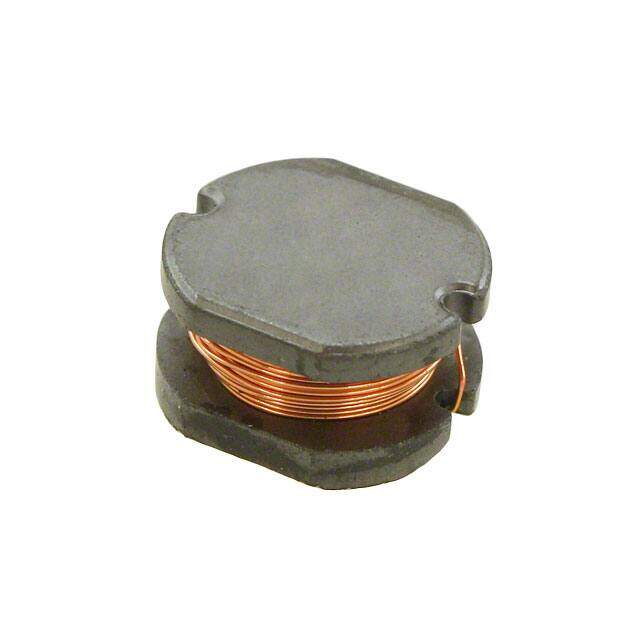

768776312 image
Favorite
768776312 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD2HV Nonstandard 0.394Lx0.354W 10.00mmx9.00mm 1.2mH
PDF
/
Buying Options
Total Price: USD $2.24
Unit Price: USD $2.244
≥1 USD $2.244
≥10 USD $2.0724
≥100 USD $1.8568
≥500 USD $1.7864
≥1000 USD $1.71512
Inventory: 333
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2 HV
Size / Dimension 0.394Lx0.354W 10.00mmx9.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 350mA
Shielding Unshielded
Current Rating 350mA
Inductance 1.2mH
Test Frequency 100kHz
DC Resistance (DCR) 3Ohm Max
Max DC Current 350mA
Frequency - Self Resonant 1.8MHz
Inductance Frequency - Test 100kHz
Current - Saturation 350mA
Inductance Tolerance 10%
RMS Current (Irms) 350mA

Dimensions

Height 5.4mm
Height Seated (Max) 0.232 5.90mm
Length 10.0076mm
Width 8.9916mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
