768772681
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description

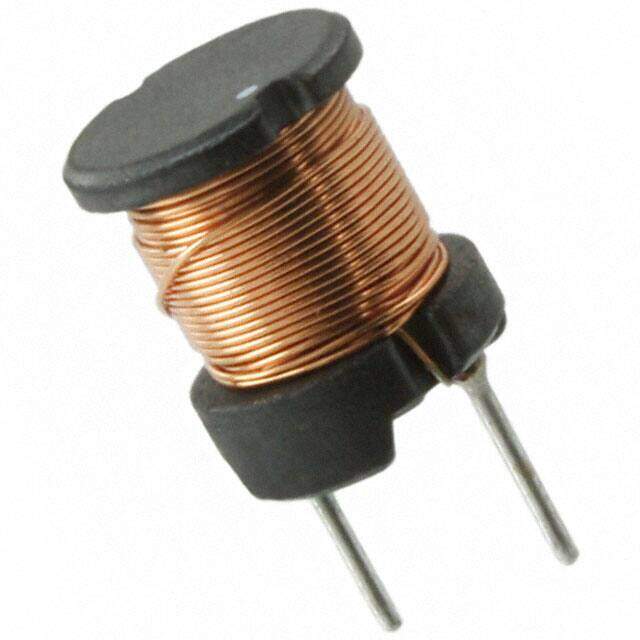

WE-TI HV Radial Vertical Cylinder (Open) 0.307Dia 7.80mm 680muH
PDF
/
Buying Options
Total Price: USD $1.13
Unit Price: USD $1.13084
≥1 USD $1.13084
≥10 USD $1.06683
≥100 USD $1.006454
≥500 USD $0.949473
≥1000 USD $0.895735
Inventory: 1131
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 22 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series WE-TI HV
Size / Dimension 0.307Dia 7.80mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 520mA
Shielding Unshielded
Current Rating 520mA
Lead Pitch 5mm
Inductance 680μH
Test Frequency 100kHz
DC Resistance (DCR) 1.68Ohm Max
Max DC Current 520mA
Frequency - Self Resonant 2.15MHz
Inductance Frequency - Test 100kHz
Current - Saturation 760mA
Inductance Tolerance 10%
RMS Current (Irms) 520mA
Dimensions
Diameter 7.8mm
Height 5mm
Height Seated (Max) 0.394 10.00mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
