768772222
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description

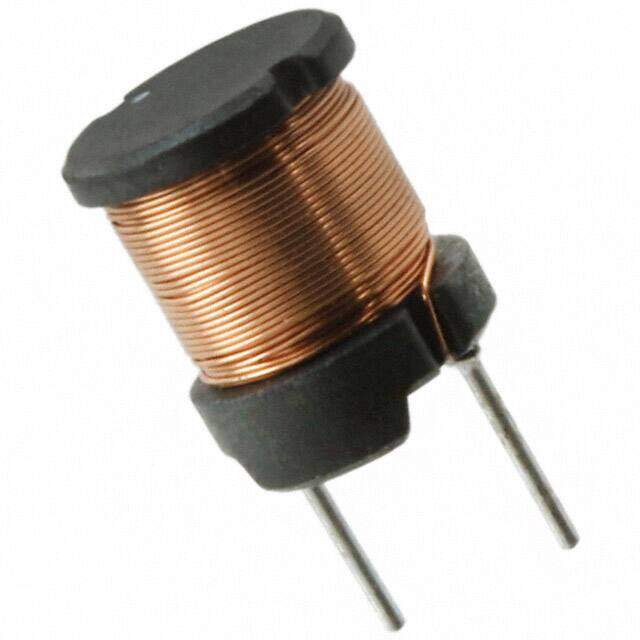

WE-TI HV Radial Vertical Cylinder (Open) 0.307Dia 7.80mm 2.2mH
PDF
/
Buying Options
Total Price: USD $1.16
Unit Price: USD $1.162094
≥1 USD $1.162094
≥10 USD $1.096318
≥100 USD $1.034263
≥500 USD $0.975715
≥1000 USD $0.920491
Inventory: 1199
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height Seated (Max) 0.394 10.00mm
Height 5mm
Technical
RMS Current (Irms) 320mA
Inductance Tolerance 10%
Current - Saturation 320mA
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 1.2MHz
Max DC Current 320mA
DC Resistance (DCR) 4.73Ohm Max
Test Frequency 100kHz
Inductance 2.2mH
Lead Pitch 5mm
Current Rating 320mA
Shielding Unshielded
Current Rating (Amps) 320mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.307Dia 7.80mm
Series WE-TI HV
Packaging Tray
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Vertical Cylinder (Open)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 22 Weeks
