RoHS
RoHS RoHS compliant
Package Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors

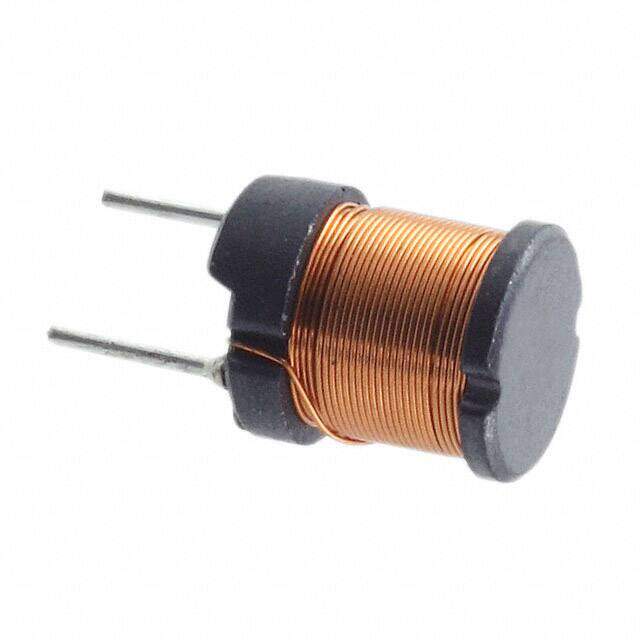

Description WE-TI HV Radial Vertical Cylinder (Open) 0.307Dia 7.80mm 1.2mH
PDF
/
Buying Options
Total Price: USD $1.11
Unit Price: USD $1.105583
≥1 USD $1.105583
≥10 USD $1.043
≥100 USD $0.983963
≥500 USD $0.928269
≥1000 USD $0.875722
Inventory: 1079
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Height Seated (Max) 0.394 10.00mm
Height 5mm
Diameter 7.8mm

Technical

RMS Current (Irms) 400mA
Inductance Tolerance 10%
Current - Saturation 450mA
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 1.65MHz
Max DC Current 400mA
DC Resistance (DCR) 2.64Ohm Max
Test Frequency 100kHz
Inductance 1.2mH
Lead Pitch 5mm
Current Rating 400mA
Shielding Unshielded
Current Rating (Amps) 400mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.307Dia 7.80mm
Series WE-TI HV
Packaging Tray
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Vertical Cylinder (Open)
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 22 Weeks
