768772102
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description

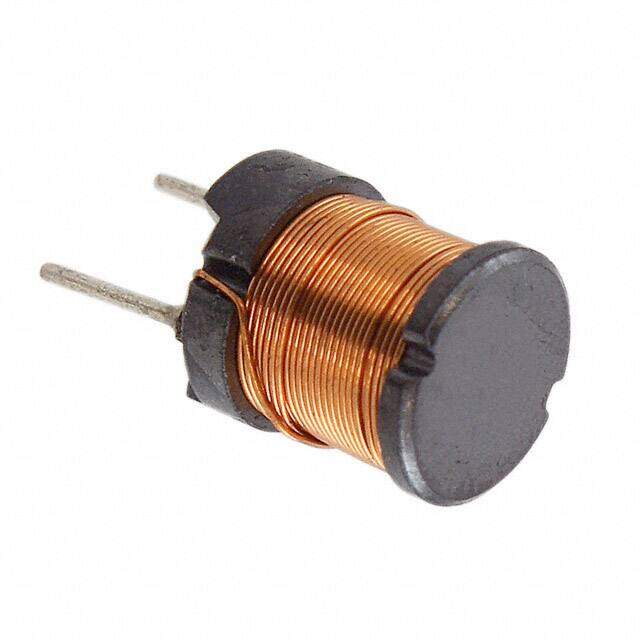

WE-TI HV Radial Vertical Cylinder (Open) 0.307Dia 7.80mm 1mH
PDF
/
Buying Options
Total Price: USD $1.34
Unit Price: USD $1.34235
≥1 USD $1.34235
≥10 USD $1.102
≥100 USD $1.0678
≥500 USD $1.03265
≥1000 USD $0.99845
Inventory: 853
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height Seated (Max) 0.394 10.00mm
Height 5mm
Technical
RMS Current (Irms) 500mA
Inductance Tolerance 10%
Current - Saturation 550mA
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 1.8MHz
Max DC Current 500mA
DC Resistance (DCR) 2.08Ohm Max
Test Frequency 100kHz
Inductance 1mH
Lead Pitch 5mm
Current Rating 500mA
Shielding Unshielded
Current Rating (Amps) 500mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.307Dia 7.80mm
Series WE-TI HV
Packaging Tray
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Vertical Cylinder (Open)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 22 Weeks
