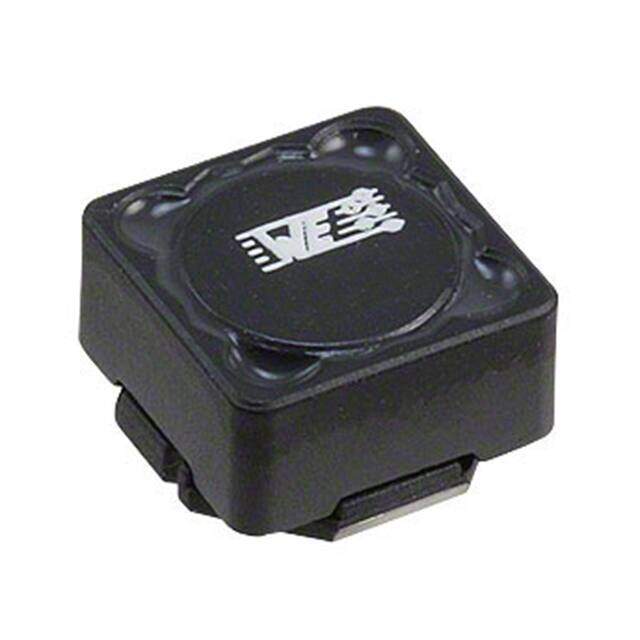

7687714222

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD HV Nonstandard 0.394Lx0.394W 10.00mmx10.00mm 2.2mH
PDF
/
Buying Options
Total Price: USD $2.22
Unit Price: USD $2.216449
≥1 USD $2.216449
≥10 USD $2.090996
≥100 USD $1.972629
≥500 USD $1.86098
≥1000 USD $1.755636
Inventory: 1281
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 10mm
Length 10mm
Height Seated (Max) 0.236 6.00mm
Height 6mm

Technical

Series Resistance 5.5Ohm
RMS Current (Irms) 260mA
Inductance Tolerance 20%
Current - Saturation 370mA
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 1.2MHz
Max DC Current 260mA
DC Resistance (DCR) 6.5Ohm Max
Test Frequency 100kHz
Inductance 2.2mH
Current Rating 260mA
Depth 10mm
Shielding Shielded
Current Rating (Amps) 260mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.394Lx0.394W 10.00mmx10.00mm
Series WE-PD HV
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C

Physical

Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
