750312186
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical
Category Inductors, Coils, Chokes / Fixed Inductors
Description

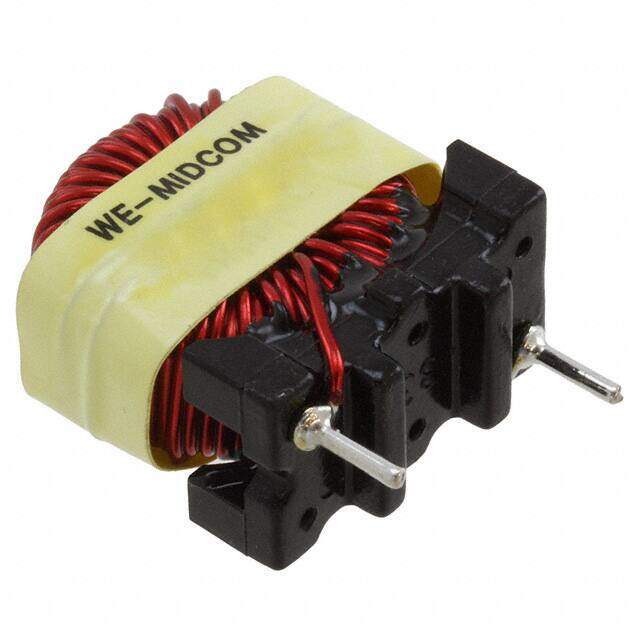

FIXED IND 696UH 2A 128 MOHM TH
PDF
/
Inventory: 8337
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mounting Type Through Hole
Package / Case Radial, Vertical
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series MID-LLIT
Size / Dimension 0.820Lx0.450W 20.83mmx11.43mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Toroidal
Current Rating (Amps) 2A
Inductance 696μH
DC Resistance (DCR) 128mOhm Max
Inductance Frequency - Test 1kHz
Dimensions
Height Seated (Max) 0.970 24.64mm
Compliance
RoHS Status ROHS3 Compliant
