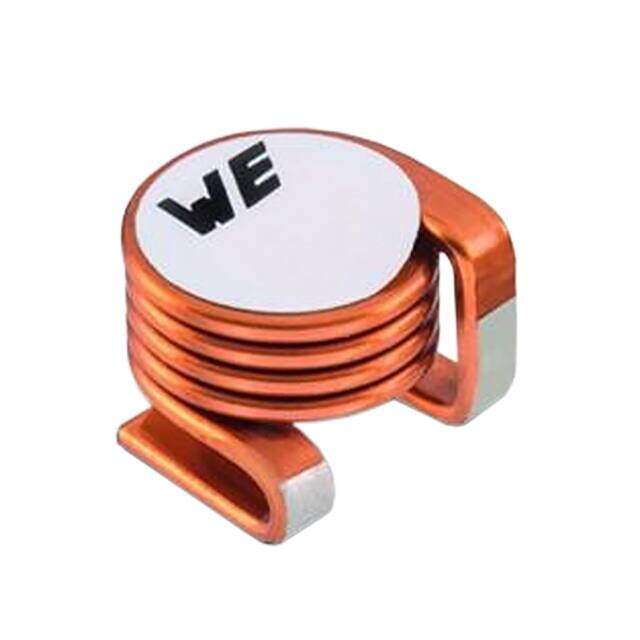

7449152022
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 22NH 40A 0.55 MOHM SMD
PDF
/
Buying Options
Total Price: USD $2.1
Unit Price: USD $2.101676
≥1 USD $2.101676
≥10 USD $1.982707
≥100 USD $1.87048
≥500 USD $1.764602
≥1000 USD $1.664716
Inventory: 965
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 1212
Material - Core Air
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-ACHC
Size / Dimension 0.472Lx0.453W 12.00mmx11.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 40A
Shielding Unshielded
Inductance 22nH
DC Resistance (DCR) 0.55mOhm Max
Frequency - Self Resonant 867MHz
Q @ Freq 280 @ 100MHz
Inductance Frequency - Test 1MHz
Inductance Tolerance 20%
Dimensions
Height Seated (Max) 0.260 6.60mm
Compliance
RoHS Status ROHS3 Compliant
