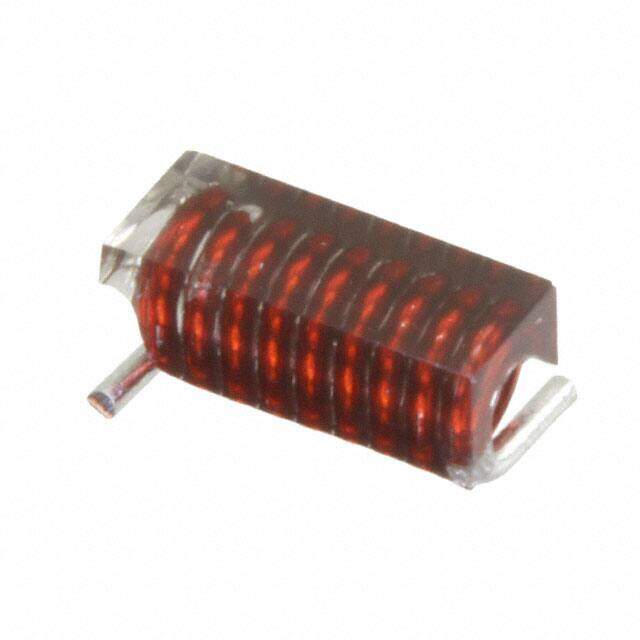

744914135
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-CAIR Nonstandard 0.270Lx0.120W 6.86mmx3.05mm 35.5nH
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.701761
≥1 USD $0.701761
≥10 USD $0.662041
≥100 USD $0.624571
≥500 USD $0.589214
≥1000 USD $0.555865
Inventory: 7105
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Air
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-CAIR
Size / Dimension 0.270Lx0.120W 6.86mmx3.05mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 4A
Shielding Unshielded
Current Rating 4A
Inductance 35.5nH
Test Frequency 150MHz
DC Resistance (DCR) 6.8mOhm Max
Frequency - Self Resonant 1.5GHz
Q @ Freq 112 @ 150MHz
Inductance Frequency - Test 150MHz
Dimensions
Height Seated (Max) 0.125 3.18mm
Length 6.858mm
Width 3.048mm
Compliance
RoHS Status ROHS3 Compliant
