744913118
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description

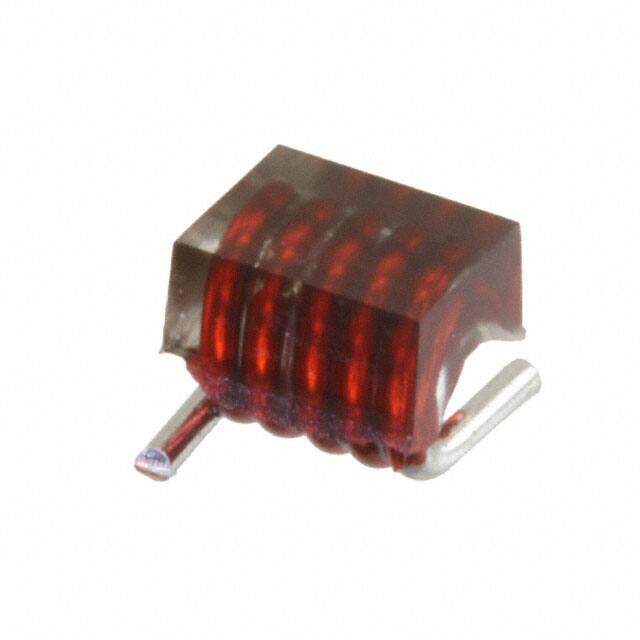

WE-CAIR Nonstandard 0.145Lx0.120W 3.68mmx3.05mm 18.5nH
PDF
/
Buying Options
Total Price: USD $0.72
Unit Price: USD $0.719152
≥1 USD $0.719152
≥10 USD $0.678439
≥100 USD $0.640033
≥500 USD $0.603805
≥1000 USD $0.569637
Inventory: 1681
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 3.048mm
Length 3.683mm
Height Seated (Max) 0.125 3.18mm
Technical
Inductance Frequency - Test 150MHz
Q @ Freq 132 @ 150MHz
Frequency - Self Resonant 2.5GHz
DC Resistance (DCR) 3.9mOhm Max
Test Frequency 150MHz
Inductance 18.5nH
Current Rating 4A
Shielding Unshielded
Current Rating (Amps) 4A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±5%
Size / Dimension 0.145Lx0.120W 3.68mmx3.05mm
Series WE-CAIR
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Air
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
