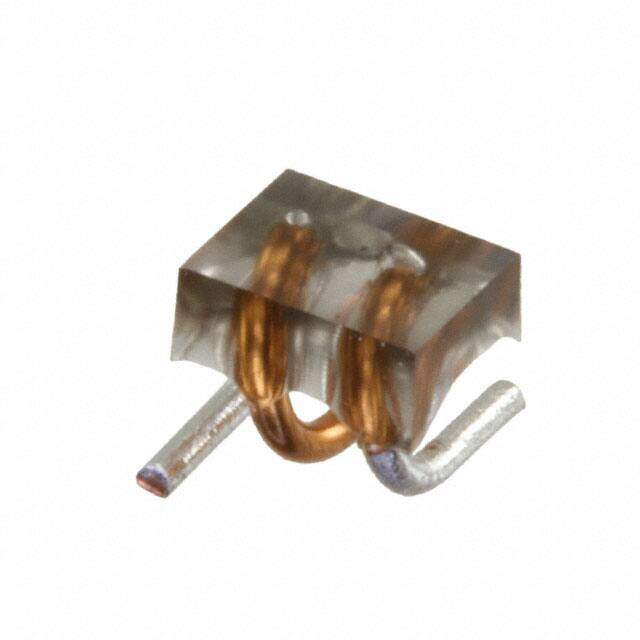

744913050
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-CAIR Nonstandard 0.145Lx0.120W 3.68mmx3.05mm 5nH
PDF
/
Inventory: 3569
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Composition Wirewound
Current Rating (Amps) 4A
Shielding Unshielded
Current Rating 4A
Inductance 5nH
Test Frequency 150MHz
DC Resistance (DCR) 1.8mOhm Max
Frequency - Self Resonant 6.5GHz
Q @ Freq 140 @ 150MHz
Inductance Frequency - Test 150MHz
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±5%
Size / Dimension 0.145Lx0.120W 3.68mmx3.05mm
Series WE-CAIR
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Dimensions
Height Seated (Max) 0.125 3.18mm
Length 3.683mm
Width 3.048mm
Compliance
RoHS Status ROHS3 Compliant
Physical
Material - Core Air
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
