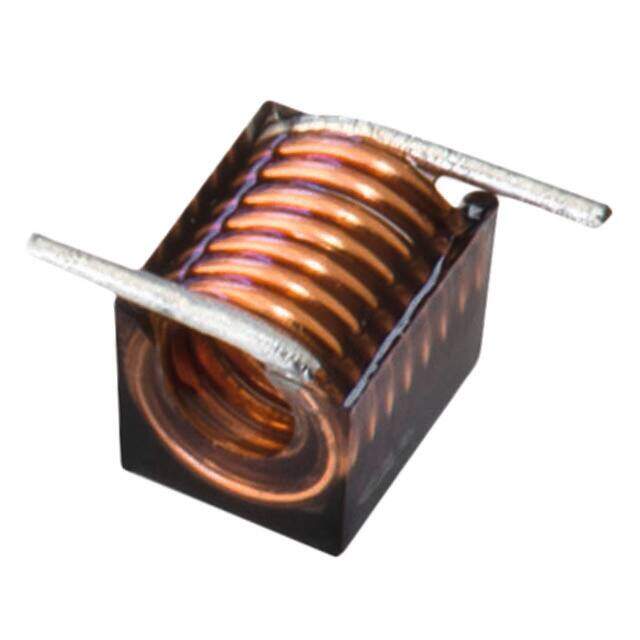

744912168 image
Favorite
744912168 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description ROHS3Compliant Wirewound Active Cut Tape (CT) Wirewound Inductor -40C~125C 1.5GHz 8.2mOhm Max 68nH
PDF
/
Buying Options
Total Price: USD $0.87
Unit Price: USD $0.872195
≥1 USD $0.872195
≥10 USD $0.822824
≥100 USD $0.776257
≥500 USD $0.732312
≥1000 USD $0.69086
Inventory: 2552
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 3.81mm
Length 4.826mm
Height Seated (Max) 0.165 4.20mm
Height 4.2mm

Technical

RMS Current (Irms) 2.5A
Inductance Tolerance 5%
Q Factor 100
Inductance Frequency - Test 150MHz
Q @ Freq 100 @ 150MHz
Frequency - Self Resonant 1.5GHz
Max DC Current 2.5A
DC Resistance (DCR) 8.2mOhm Max
Test Frequency 150MHz
Inductance 68nH
Current Rating 2.5A
Shielding Unshielded
Current Rating (Amps) 2.5A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±5%
Size / Dimension 0.190Lx0.150W 4.83mmx3.81mm
Series WE-CAIR
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C

Physical

Material - Core Air
Supplier Device Package 4248
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 11 Weeks
