744900020
RoHS
RoHS compliant
RoHS compliantPackage 0201 (0603 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description

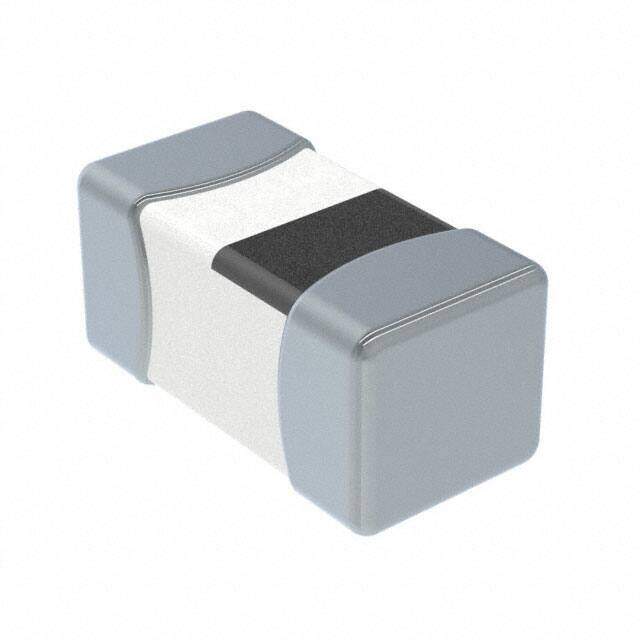

WE-TCI 0201 (0603Metric) 0.024Lx0.012W 0.60mmx0.30mm 2nH
PDF
/
Inventory: 9591
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0201 (0603 Metric)
Supplier Device Package 0201 (0603 Metric)
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-TCI
Size / Dimension 0.024Lx0.012W 0.60mmx0.30mm
Tolerance ±0.2nH
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Thin Film
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Thin Film
Current Rating (Amps) 200mA
Shielding Unshielded
Current Rating 200mA
Case Code (Metric) 0603
Case Code (Imperial) 0201
Inductance 2nH
Test Frequency 500MHz
DC Resistance (DCR) 700mOhm Max
Frequency - Self Resonant 8GHz
Q @ Freq 8 @ 500MHz
Inductance Frequency - Test 500MHz
Dimensions
Height Seated (Max) 0.011 0.28mm
Length 609.6μm
Width 304.8μm
Compliance
RoHS Status ROHS3 Compliant
