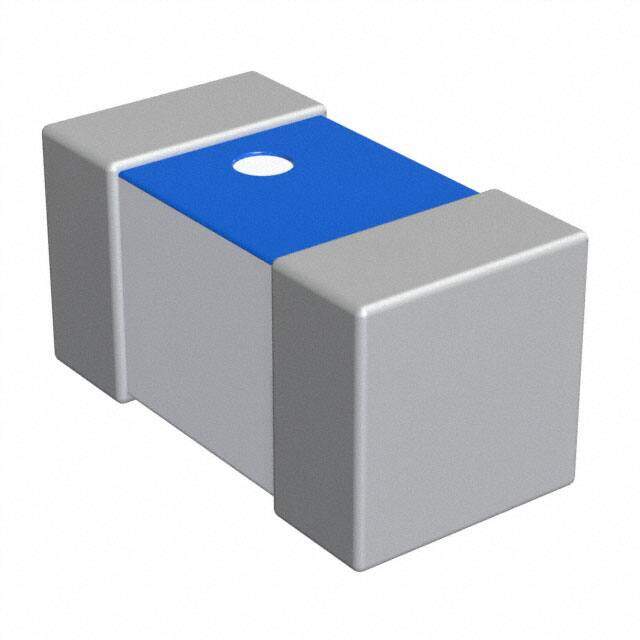

744900013 image
Favorite
744900013 image
Favorite
RoHS
RoHS RoHS compliant
Package 0201 (0603 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-TCI 0201 (0603Metric) 0.024Lx0.012W 0.60mmx0.30mm 1.3nH
PDF
/
Inventory: 947
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 304.8μm
Length 609.6μm
Height Seated (Max) 0.110 2.80mm

Technical

Inductance Frequency - Test 500MHz
Q @ Freq 8 @ 500MHz
Frequency - Self Resonant 9GHz
DC Resistance (DCR) 450mOhm Max
Test Frequency 500MHz
Inductance 1.3nH
Case Code (Imperial) 0201
Case Code (Metric) 0603
Current Rating 250mA
Shielding Unshielded
Current Rating (Amps) 250mA
Composition Thin Film
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Thin Film
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±0.2nH
Size / Dimension 0.024Lx0.012W 0.60mmx0.30mm
Series WE-TCI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Supplier Device Package 0201 (0603 Metric)
Package / Case 0201 (0603 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 8 Weeks
