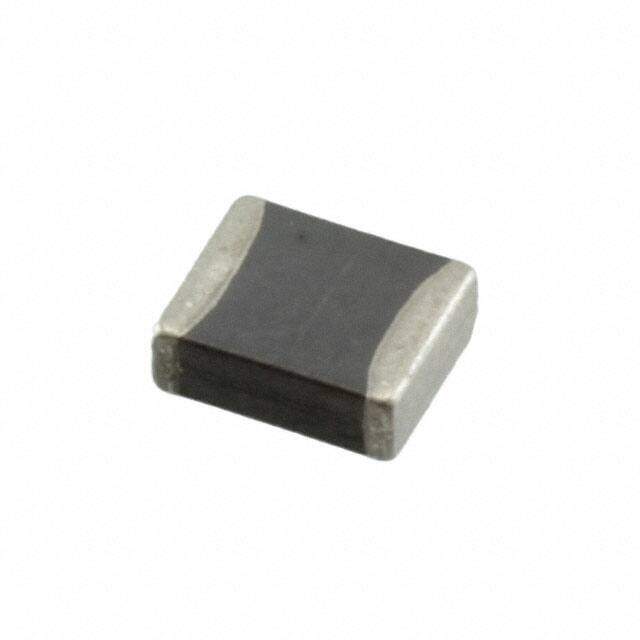

74479899130 image
Favorite
74479899130 image
Favorite

74479899130

Würth Elektronik
RoHS
RoHS RoHS compliant
Package 1210 (3225 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PMI 1210 (3225Metric) 0.126Lx0.102W 3.20mmx2.60mm 300nH
PDF
/
Inventory: 3517
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 2.5908mm
Length 3.2004mm
Height Seated (Max) 0.047 1.20mm

Technical

Inductance Tolerance 20%
Current - Saturation 2.5A
Inductance Frequency - Test 1MHz
Q @ Freq 22 @ 1MHz
Frequency - Self Resonant 115MHz
DC Resistance (DCR) 15mOhm
Test Frequency 1MHz
Inductance 300nH
Case Code (Imperial) 1210
Case Code (Metric) 3225
Current Rating 3.9A
Shielding Shielded
Current Rating (Amps) 3.9A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Multilayer
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.126Lx0.102W 3.20mmx2.60mm
Series WE-PMI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Supplier Device Package 1210 (3225 Metric)
Package / Case 1210 (3225 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 15 Weeks
