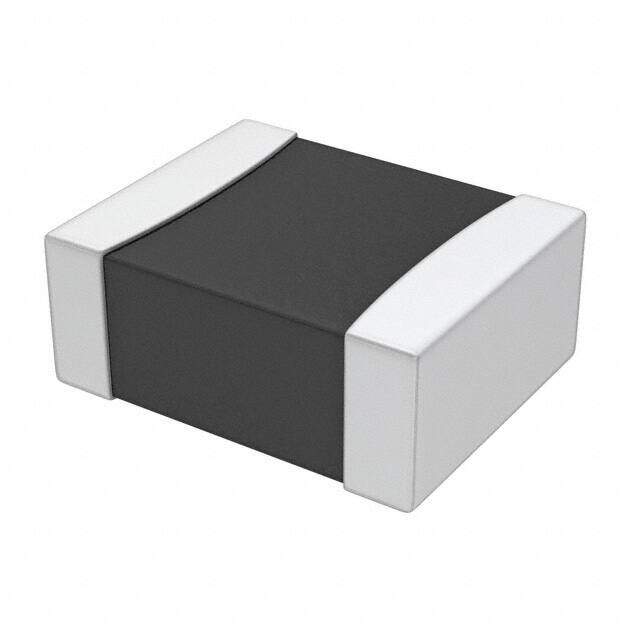

74479787233A
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PMI Nonstandard 0.098Lx0.079W 2.50mmx2.00mm 3.3muH
PDF
/
Buying Options
Total Price: USD $0.9
Unit Price: USD $0.901805
≥1 USD $0.901805
≥10 USD $0.850756
≥100 USD $0.802608
≥500 USD $0.757177
≥1000 USD $0.714313
Inventory: 1095
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PMI
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Multilayer
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 1.6A
Shielding Unshielded
Current Rating 1.6A
Inductance 3.3μH
Test Frequency 1MHz
DC Resistance (DCR) 100mOhm
Frequency - Self Resonant 35MHz
Q @ Freq 25 @ 1MHz
Inductance Frequency - Test 1MHz
Current - Saturation 400mA
Inductance Tolerance 20%
Dimensions
Height Seated (Max) 0.039 1.00mm
Length 2.4892mm
Width 2.0066mm
Compliance
RoHS Status ROHS3 Compliant
