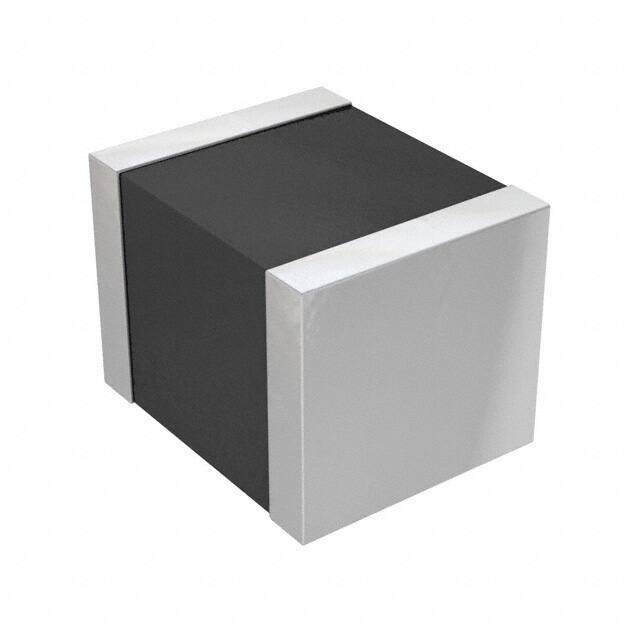

74479787210A
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PMI 1008 (2520Metric) 0.102Lx0.083W 2.60mmx2.10mm 1muH
PDF
/
Buying Options
Total Price: USD $0.99
Unit Price: USD $0.9944
≥1 USD $0.9944
≥10 USD $0.9768
≥100 USD $0.88264
≥500 USD $0.85096
≥1000 USD $0.7876
≥3000 USD $0.72512
Inventory: 3946
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 84 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Weight 32.006612mg
Core Material Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Series WE-PMI
Size / Dimension 0.102Lx0.083W 2.60mmx2.10mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Multilayer
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 1.7A
Shielding Shielded
Current Rating 1.7A
Case Code (Metric) 2520
Case Code (Imperial) 1008
Inductance 1μH
Test Frequency 1MHz
DC Resistance (DCR) 55mOhm
Max DC Current 1.7A
Frequency - Self Resonant 90MHz
Q @ Freq 15 @ 1MHz
Inductance Frequency - Test 1MHz
Current - Saturation 1A
Q Factor 15
Inductance Tolerance 20%
Series Resistance 550μOhm
Dimensions
Height 1mm
Height Seated (Max) 0.075 1.90mm
Length 2.5908mm
Width 2.1082mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
