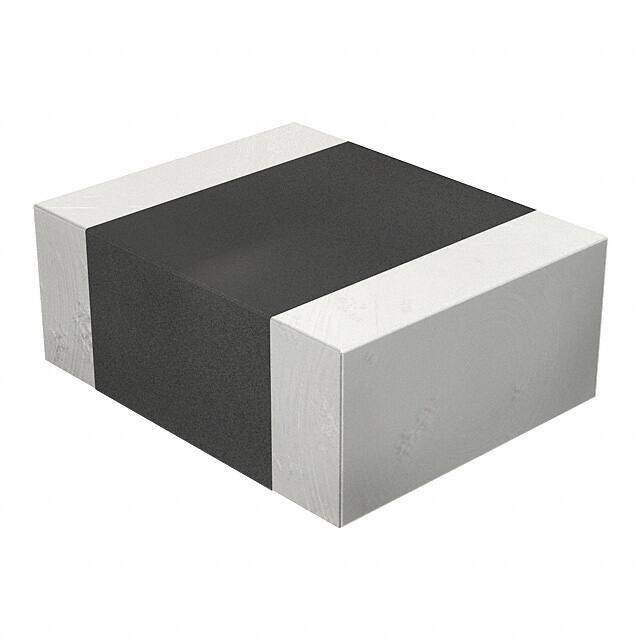

74479787147A
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PMI 1008 (2520Metric) 0.102Lx0.083W 2.60mmx2.10mm 470nH
PDF
/
Inventory: 4221
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Core Material Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Series WE-PMI
Size / Dimension 0.102Lx0.083W 2.60mmx2.10mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Multilayer
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 1.8A
Shielding Shielded
Current Rating 1.8A
Case Code (Metric) 2520
Case Code (Imperial) 1008
Inductance 470nH
Test Frequency 1MHz
DC Resistance (DCR) 40mOhm
Max DC Current 1.8A
Frequency - Self Resonant 110MHz
Q @ Freq 15 @ 1MHz
Inductance Frequency - Test 1MHz
Current - Saturation 950mA
Q Factor 15
Inductance Tolerance 20%
Series Resistance 40μOhm
Dimensions
Height Seated (Max) 0.075 1.90mm
Length 2.5908mm
Width 2.1082mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
