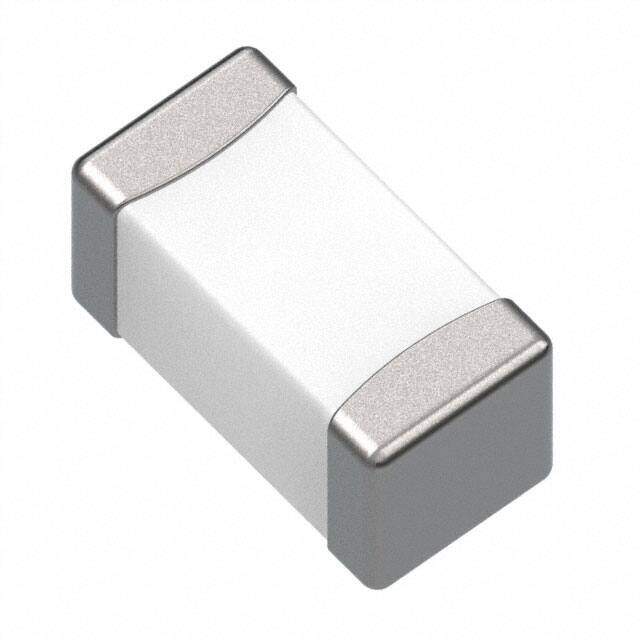

744786156A

Würth Elektronik
RoHS
RoHS RoHS compliant
Package 0603 (1608 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-MK 0603 (1608Metric) 0.063Lx0.031W 1.60mmx0.80mm 56nH
PDF
/
Buying Options
Total Price: USD $1.91
Unit Price: USD $1.91045
≥1 USD $1.91045
≥10 USD $1.5675
≥100 USD $1.51905
≥500 USD $1.46965
≥1000 USD $1.42025
Inventory: 1133
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 787.4μm
Length 1.6002mm
Height Seated (Max) 0.037 0.95mm

Technical

Inductance Tolerance 5%
Inductance Frequency - Test 100MHz
Q @ Freq 8 @ 100MHz
Frequency - Self Resonant 1.1GHz
Max DC Current 300mA
DC Resistance (DCR) 750mOhm Max
Test Frequency 100MHz
Inductance 56nH
Case Code (Imperial) 0603
Case Code (Metric) 1608
Current Rating 300mA
Shielding Unshielded
Current Rating (Amps) 300mA
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Type Multilayer
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±5%
Size / Dimension 0.063Lx0.031W 1.60mmx0.80mm
Series WE-MK
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C

Physical

Material - Core Ceramic
Supplier Device Package 0603 (1608 Metric)
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 9 Weeks
