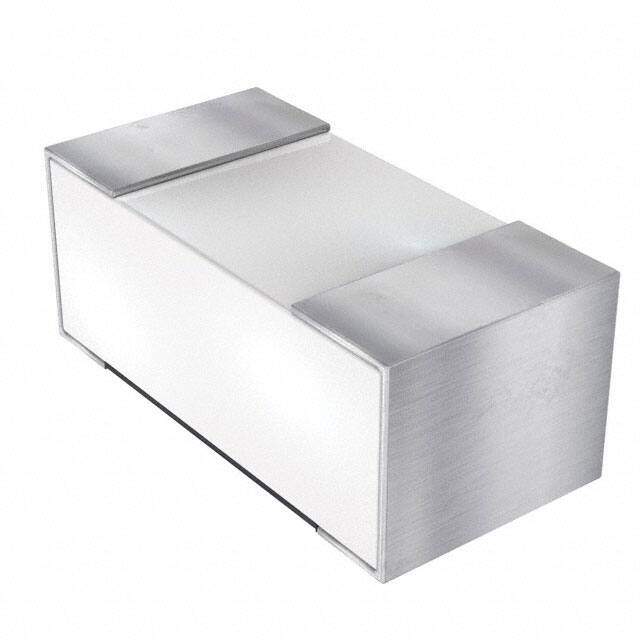

74478227
RoHS
RoHS compliant
RoHS compliantPackage 0201 (0603 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-MK 0201 (0603Metric) 0.024Lx0.012W 0.60mmx0.30mm 27nH
PDF
/
Inventory: 7041
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 304.8μm
Length 609.6μm
Height Seated (Max) 0.013 0.33mm
Technical
Inductance Tolerance 5%
Inductance Frequency - Test 100MHz
Q @ Freq 18 @ 800MHz
Frequency - Self Resonant 1.8GHz
Max DC Current 200mA
DC Resistance (DCR) 2Ohm Max
Test Frequency 100MHz
Inductance 27nH
Current Rating 200mA
Shielding Unshielded
Current Rating (Amps) 200mA
Min Operating Temperature -40°C
Max Operating Temperature 120°C
Type Multilayer
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±5%
Size / Dimension 0.024Lx0.012W 0.60mmx0.30mm
Series WE-MK
Packaging Tape & Reel (TR)
Operating Temperature -40°C~120°C
Physical
Material - Core Ceramic
Supplier Device Package 0201 (0603 Metric)
Package / Case 0201 (0603 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
