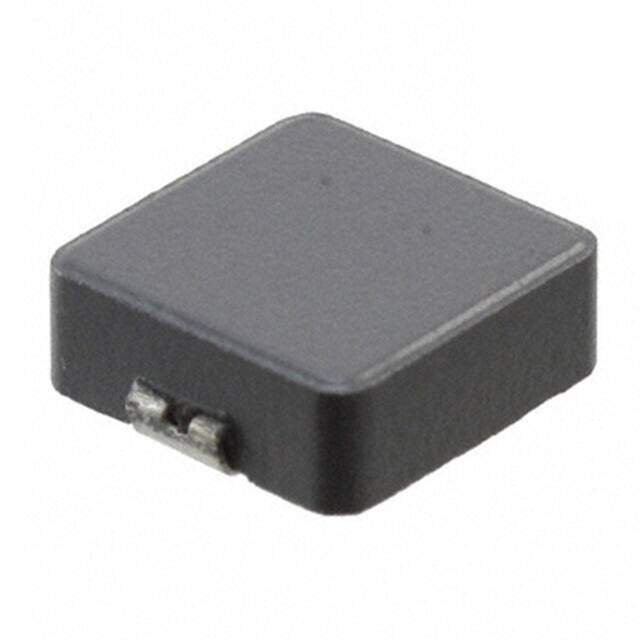

7447798221 image
Favorite
7447798221 image
Favorite

7447798221

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PDF Nonstandard 0.402Lx0.402W 10.20mmx10.20mm 22muH
PDF
/
Buying Options
Total Price: USD $1.8
Unit Price: USD $1.7974
≥1 USD $1.7974
≥10 USD $1.47535
≥100 USD $1.4288
≥500 USD $1.3832
≥1000 USD $1.33665
Inventory: 1184
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 10.2mm
Length 10.2mm
Height Seated (Max) 0.252 6.40mm
Height 6.4mm

Technical

RMS Current (Irms) 4.7A
Inductance Tolerance 20%
Current - Saturation 3.5A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 17MHz
Max DC Current 4.1A
DC Resistance (DCR) 37.3mOhm Max
Test Frequency 100kHz
Inductance 22μH
Current Rating 4.7A
Depth 10.2mm
Shielding Shielded
Current Rating (Amps) 4.7A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.402Lx0.402W 10.20mmx10.20mm
Series WE-PDF
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C

Physical

Material - Core Nickel Zinc Ferrite (NiZn)
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
