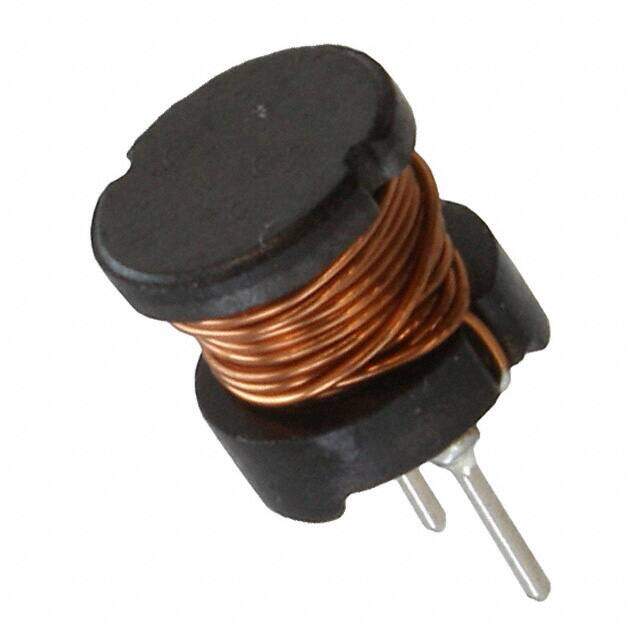

744779168
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-TI Radial Vertical Cylinder (Open) 0.307Dia 7.80mm 68muH
PDF
/
Buying Options
Total Price: USD $1.31
Unit Price: USD $1.310838
≥1 USD $1.310838
≥10 USD $1.236635
≥100 USD $1.166636
≥500 USD $1.100609
≥1000 USD $1.038305
Inventory: 7028
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series WE-TI
Size / Dimension 0.307Dia 7.80mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.4A
Shielding Unshielded
Current Rating 1.4A
Lead Pitch 4mm
Inductance 68μH
Test Frequency 1kHz
DC Resistance (DCR) 280mOhm Max
Max DC Current 1.4A
Frequency - Self Resonant 9.4MHz
Inductance Frequency - Test 1kHz
Current - Saturation 720mA
Inductance Tolerance 10%
RMS Current (Irms) 1.4A
Dimensions
Height 6.5mm
Height Seated (Max) 0.394 10.00mm
Length 6.5mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
