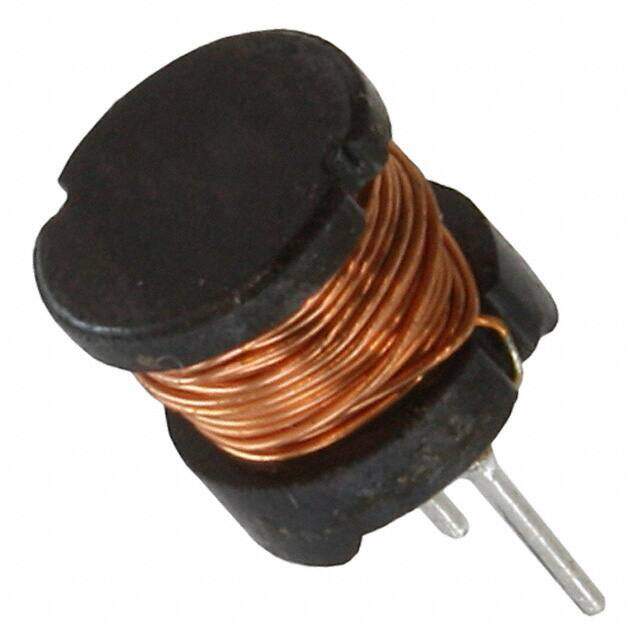

7447790221
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-TI Radial Vertical Cylinder (Open) 0.307Dia 7.80mm 220muH
PDF
/
Buying Options
Total Price: USD $13.68
Unit Price: USD $13.68
≥1 USD $13.68
≥10 USD $11.2252
≥100 USD $10.8737
≥500 USD $10.52315
≥1000 USD $10.1726
Inventory: 1066
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Length 6.5mm
Height Seated (Max) 0.394 10.00mm
Diameter 6mm
Technical
RMS Current (Irms) 600mA
Inductance Tolerance 10%
Current - Saturation 500mA
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 4.6MHz
Max DC Current 600mA
DC Resistance (DCR) 800mOhm Max
Test Frequency 1kHz
Inductance 220μH
Lead Pitch 4mm
Current Rating 600mA
Shielding Unshielded
Current Rating (Amps) 600mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.307Dia 7.80mm
Series WE-TI
Packaging Tray
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Vertical Cylinder (Open)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
