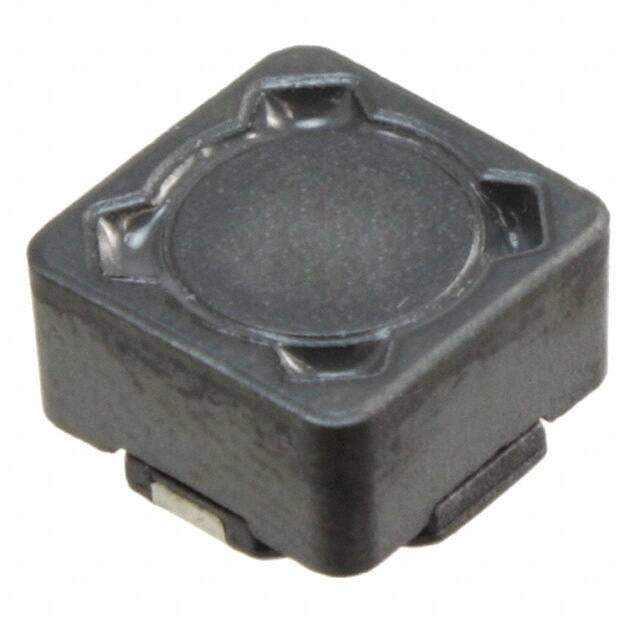

744778925
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD Robust Nonstandard 0.287Lx0.287W 7.30mmx7.30mm 560muH
PDF
/
Inventory: 1437
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 7.2898mm
Length 7.3mm
Height Seated (Max) 0.138 3.50mm
Height 1.5mm
Technical
Series Resistance 4.67Ohm
Inductance Tolerance 20%
Current - Saturation 300mA
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 3.7MHz
Max DC Current 270mA
DC Resistance (DCR) 4.67Ohm Max
Test Frequency 1kHz
Inductance 560μH
Current Rating 270mA
Shielding Shielded
Current Rating (Amps) 270mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 4.67Ohm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.287Lx0.287W 7.30mmx7.30mm
Series WE-PD Robust
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
