7447786004
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD Robust Nonstandard 0.244Lx0.232W 6.20mmx5.90mm 4.7muH
PDF
/
Buying Options
Total Price: USD $2.01
Unit Price: USD $2.011693
≥1 USD $2.011693
≥10 USD $1.897832
≥100 USD $1.790395
≥500 USD $1.689056
≥1000 USD $1.593453
Inventory: 7181
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 5.9mm
Length 6.1976mm
Height Seated (Max) 0.201 5.10mm
Height 5mm
Technical
Series Resistance 65mOhm
RMS Current (Irms) 2.8A
Inductance Tolerance 25%
Current - Saturation 2.8A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 72MHz
Max DC Current 2.8A
DC Resistance (DCR) 65mOhm Max
Test Frequency 100kHz
Inductance 4.7μH
Lead Pitch 2.5mm
Current Rating 2.8A
Depth 6.2mm
Shielding Shielded
Current Rating (Amps) 2.8A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 65mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±25%
Size / Dimension 0.244Lx0.232W 6.20mmx5.90mm
Series WE-PD Robust
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks

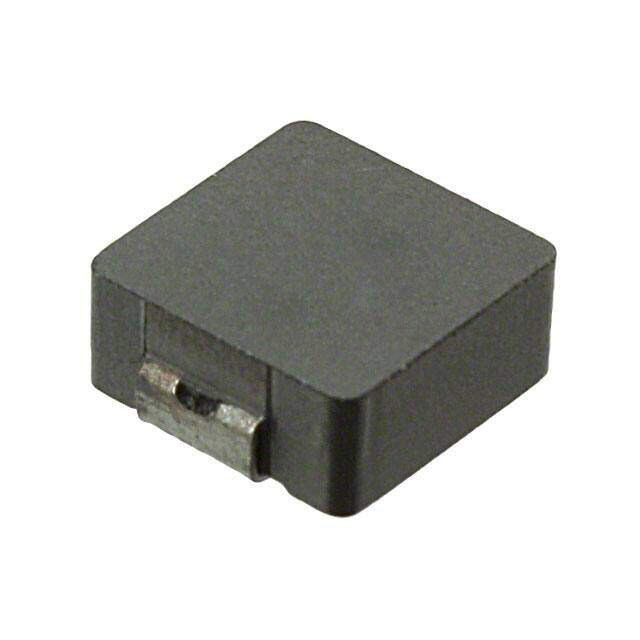

Alternative Model
