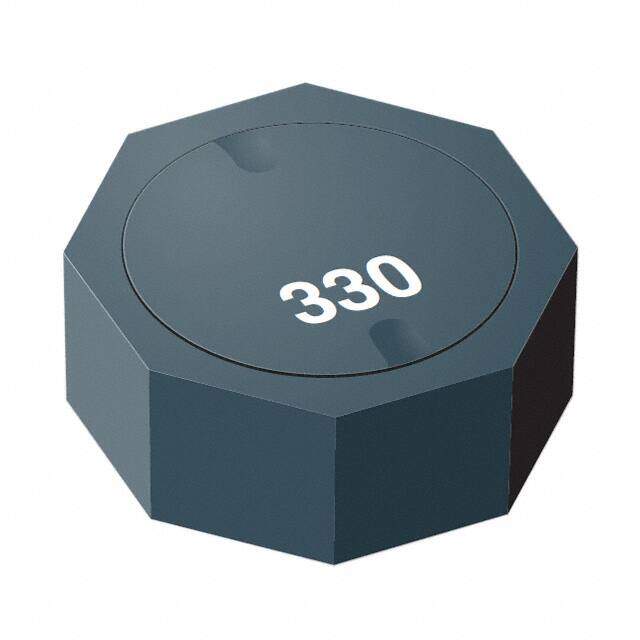

744778156 image
Favorite
744778156 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description ROHS3Compliant Wirewound Active Tape & Reel (TR) Fixed Inductor -40C~125C 12.5MHz 470mOhm Max 56muH
PDF
/
Buying Options
Total Price: USD $1.97
Unit Price: USD $1.96693
≥1 USD $1.96693
≥10 USD $1.855597
≥100 USD $1.750567
≥500 USD $1.651472
≥1000 USD $1.557993
Inventory: 1175
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD
Size / Dimension 0.287Lx0.287W 7.30mmx7.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 840mA
Shielding Shielded
Inductance 56μH
DC Resistance (DCR) 470mOhm Max
Frequency - Self Resonant 12.5MHz
Inductance Frequency - Test 1kHz
Current - Saturation 880mA

Dimensions

Height Seated (Max) 0.134 3.40mm

Compliance

RoHS Status ROHS3 Compliant
Ratings AEC-Q200
