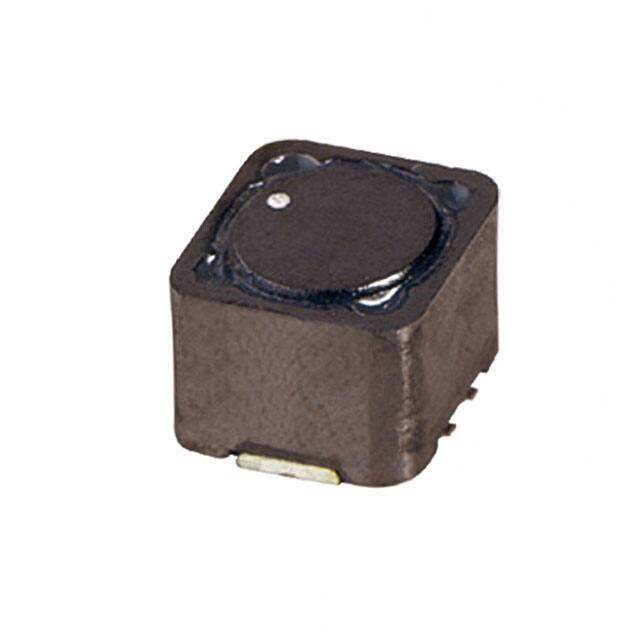

744778001 image
Favorite
744778001 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD Nonstandard 0.287Lx0.287W 7.30mmx7.30mm 1muH
PDF
/
Buying Options
Total Price: USD $38.68
Unit Price: USD $38.6764
≥1 USD $38.6764
≥10 USD $31.73475
≥100 USD $30.74295
≥500 USD $29.75115
≥1000 USD $28.75935
Inventory: 1184
Minimum: 1
-
+

Technical Details

Compliance

Ratings AEC-Q200
RoHS Status ROHS3 Compliant

Dimensions

Length 7.3mm
Height Seated (Max) 0.134 3.40mm
Height 3.2mm

Technical

Inductance Tolerance 20%
Current - Saturation 6.4A
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 115MHz
Max DC Current 5.37A
DC Resistance (DCR) 12mOhm Max
Inductance 1μH
Depth 7.3mm
Shielding Shielded
Current Rating (Amps) 5.37A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.287Lx0.287W 7.30mmx7.30mm
Series WE-PD
Packaging Tape & Reel
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
