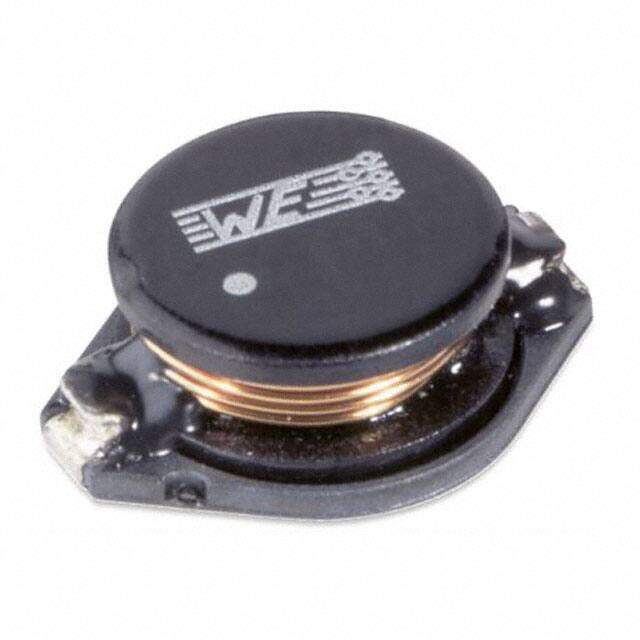

744777924 image
Favorite
744777924 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD Robust Nonstandard 0.287Lx0.287W 7.30mmx7.30mm 470muH
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.9405
≥1 USD $0.9405
≥10 USD $0.7714
≥100 USD $0.74765
≥500 USD $0.72295
≥1000 USD $0.6992
Inventory: 6509
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Supplier Device Package 7345
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD Robust
Size / Dimension 0.287Lx0.287W 7.30mmx7.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 3.01Ohm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 290mA
Shielding Shielded
Depth 7.3mm
Current Rating 290mA
Inductance 470μH
Test Frequency 1kHz
DC Resistance (DCR) 3.01Ohm Max
Max DC Current 290mA
Frequency - Self Resonant 3.8MHz
Inductance Frequency - Test 1kHz
Current - Saturation 340mA
Inductance Tolerance 20%
RMS Current (Irms) 290mA
Series Resistance 3.01Ohm

Dimensions

Height 1.5mm
Height Seated (Max) 0.177 4.50mm
Length 7.3mm
Width 7.2898mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
