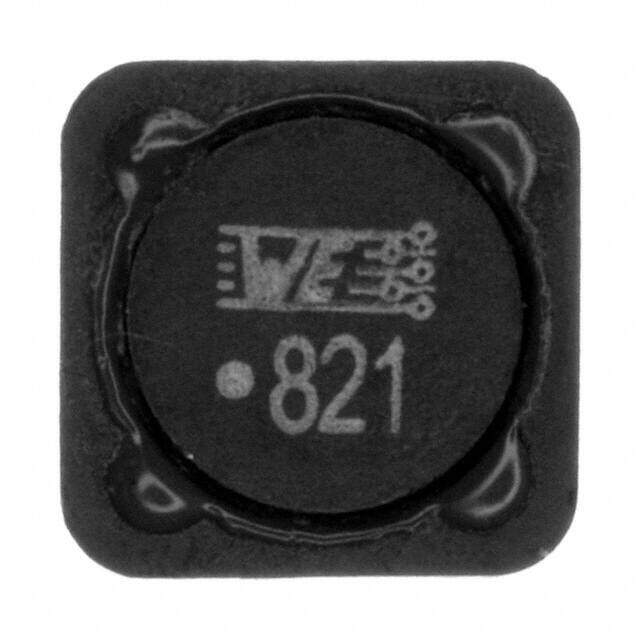

74477728
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active Tape & Reel (TR) fixed air core inductor -40C~125C 2.5MHz 5.2Ohm Max 820muH
PDF
/
Buying Options
Total Price: USD $1.81
Unit Price: USD $1.811462
≥1 USD $1.811462
≥10 USD $1.708926
≥100 USD $1.612193
≥500 USD $1.520936
≥1000 USD $1.434852
Inventory: 1103
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 7345
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD
Size / Dimension 0.287Lx0.287W 7.30mmx7.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 210mA
Shielding Shielded
Depth 7.3mm
Inductance 820μH
DC Resistance (DCR) 5.2Ohm Max
Max DC Current 210mA
Frequency - Self Resonant 2.5MHz
Inductance Frequency - Test 1kHz
Current - Saturation 260mA
Dimensions
Height 4.5mm
Height Seated (Max) 0.177 4.50mm
Length 7.3mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
