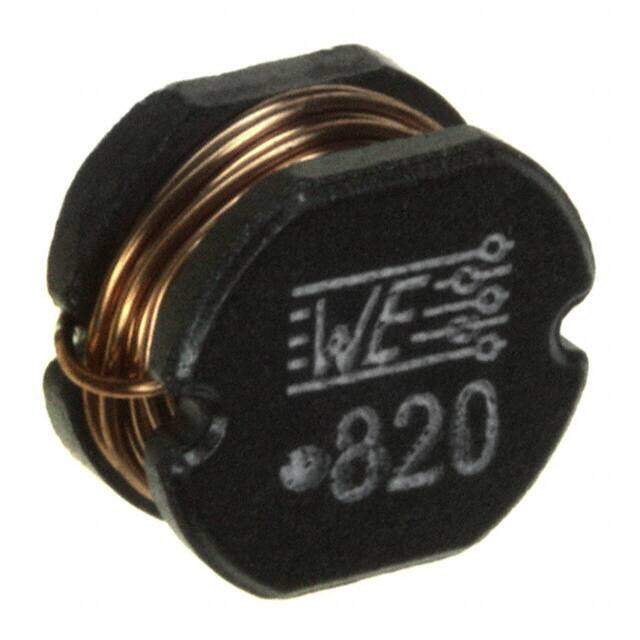

744776182
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 82UH 1.11A 250 MOHM
PDF
/
Buying Options
Total Price: USD $15.7
Unit Price: USD $15.70445
≥1 USD $15.70445
≥10 USD $12.8858
≥100 USD $12.483
≥500 USD $12.0802
≥1000 USD $11.67835
Inventory: 13207
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.394Lx0.354W 10.00mmx9.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 1.11A
Shielding Unshielded
Current Rating 1.11A
Inductance 82μH
DC Resistance (DCR) 250mOhm Max
Frequency - Self Resonant 8MHz
Inductance Frequency - Test 10kHz
Current - Saturation 1.17A
Inductance Tolerance 10%
Dimensions
Height Seated (Max) 0.232 5.90mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
