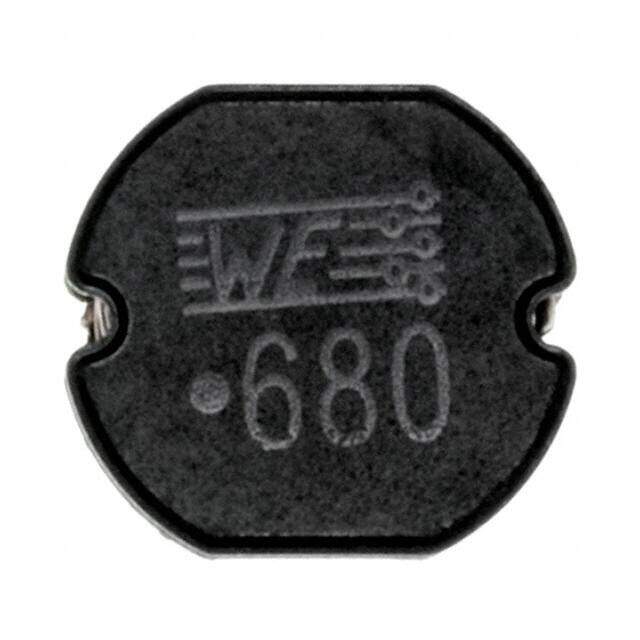

744776168
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.394Lx0.354W 10.00mmx9.00mm 68muH
PDF
/
Buying Options
Total Price: USD $2.01
Unit Price: USD $2.012738
≥1 USD $2.012738
≥10 USD $1.898808
≥100 USD $1.791333
≥500 USD $1.689931
≥1000 USD $1.594276
Inventory: 1151
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.394Lx0.354W 10.00mmx9.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 220mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.19A
Shielding Unshielded
Depth 9mm
Current Rating 1.19A
Inductance 68μH
Test Frequency 10kHz
DC Resistance (DCR) 220mOhm Max
Max DC Current 1.19A
Frequency - Self Resonant 9MHz
Inductance Frequency - Test 10kHz
Current - Saturation 1.49A
Inductance Tolerance 10%
RMS Current (Irms) 1.19A
Series Resistance 138mOhm
Dimensions
Height 5.4mm
Height Seated (Max) 0.232 5.90mm
Length 10mm
Width 9mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
