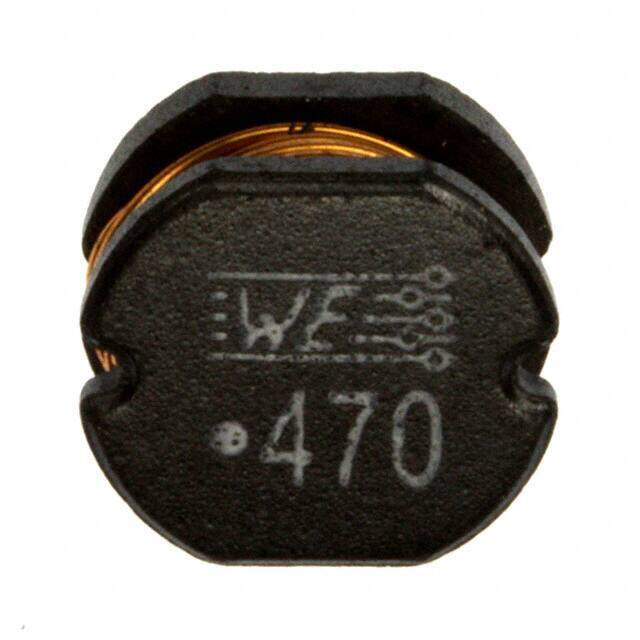

744776147
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 47UH 1.45A 170 MOHM
PDF
/
Buying Options
Total Price: USD $0.75
Unit Price: USD $0.7524
≥1 USD $0.7524
≥10 USD $0.6175
≥100 USD $0.59755
≥500 USD $0.57855
≥1000 USD $0.55955
Inventory: 1093
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.394Lx0.354W 10.00mmx9.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Resistance 95mOhm
Current Rating (Amps) 1.45A
Shielding Unshielded
Inductance 47μH
DC Resistance (DCR) 170mOhm Max
Frequency - Self Resonant 11MHz
Inductance Frequency - Test 10kHz
Current - Saturation 1.62A
Inductance Tolerance 10%
Dimensions
Height Seated (Max) 0.232 5.90mm
Compliance
RoHS Status ROHS3 Compliant
